Gent S4 Black Dual Optical Heat Sensor Voice Sounder

Part no.	S4BK-711-V
Brand	Gent
Range	S4 Black Detectors
Sub-range	Detectors with Voice Sounder

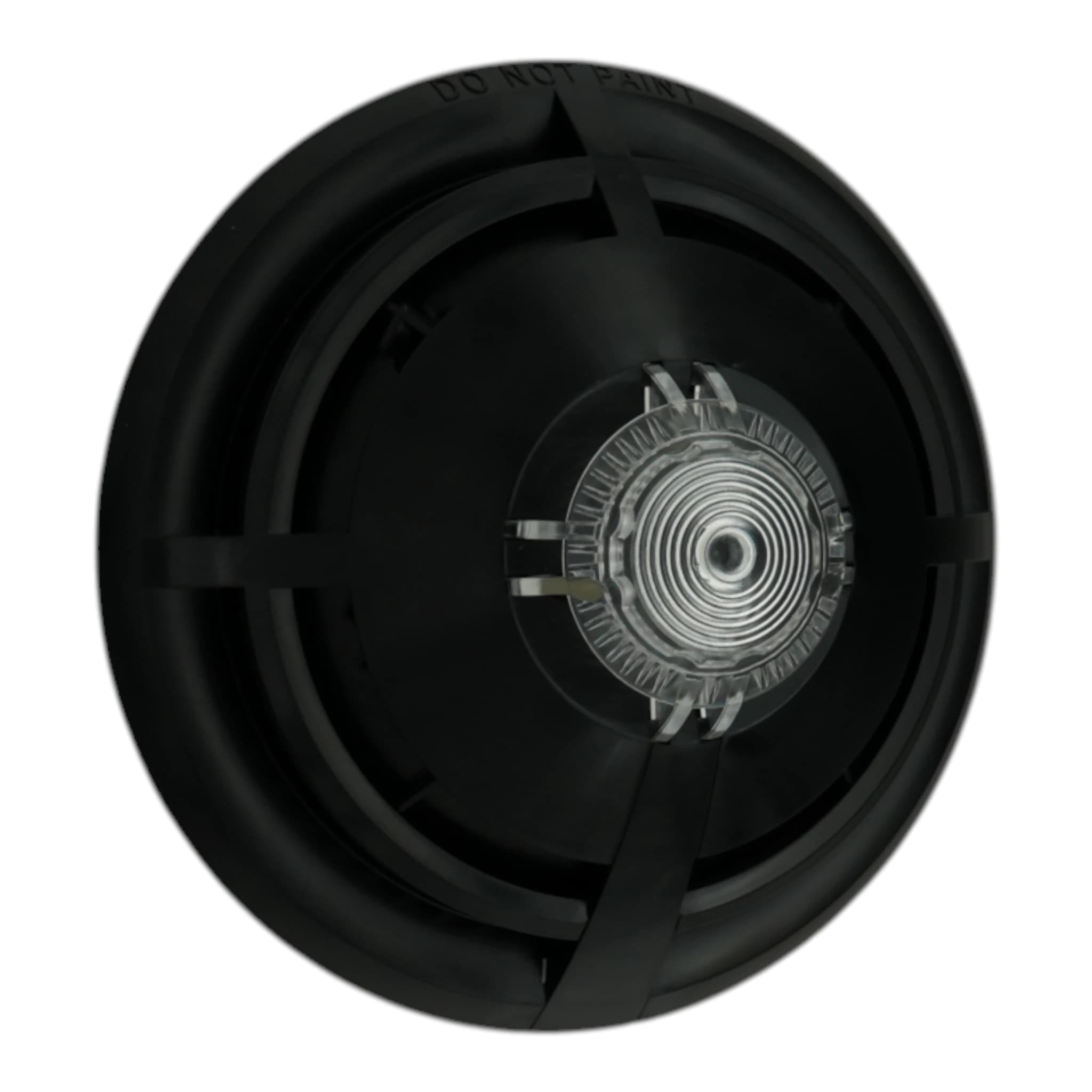

Gent by Honeywell S4BK-711-V S4 Black Dual Optical Heat Sensor Voice Sounder — black circular device with central clear lens

Image for illustration; item supplied may differ

£181.20 ex VAT

£217.44 inc VAT

In stock

Free UK delivery over £250 ex VAT, otherwise £9.95 ex VAT (£11.94 inc VAT).

Volume pricing

Applied automatically at checkout.

Quantity	Unit price ex VAT
1+	£181.20
5+	£174.86
25+	£170.33
75+	£167.61

Don't forget

S4BK-700Black Base - Common for all S-Quad SensorsBlack voice sensor sounder mounts on the common black S-Quad sensor base£11.30ex VAT£13.56 inc VATIn stock
S4BK-705Black IP21 base covers (pack 5)VAD/Sounder black S-Quad must use Base with IP21 Plate to meet Standards£13.63ex VAT£16.36 inc VATIn stock

At a glance

Smoke and heat sensing with voice soundCombines dual optical smoke sensing, heat detection and an integral voice sounder.
Certified tone settingsEN 54-3 settings include continuous 933 Hz and alternating 933/700 Hz tones, with each alternating tone lasting 0.25 seconds.
Vigilon Plus, Compact Plus and NanoConnects to the addressable loops of all three Gent panel ranges.
Selectable detection responseShares the white S4-711-V sensor states, including normal optical sensitivity with Class A1 heat in the factory setting.
Integral short-circuit isolatorShort-circuit isolation is included in the detector alongside its sensing and audible alarm functions.
Black body and matching baseThe black colour option uses the separately ordered S4BK-700 base and shares the white counterpart’s sensing channels.

Documents

PDFGent 4188-1073 issue 7 - S-Quad data and installation (white and black) (PDF, 7.2 MB)

Description Specifications Standards and approvals Documents Optional accessories FAQs Also in this range

Description

The Gent S4BK-711-V is a black S-Quad dual optical smoke and heat detector with a voice sounder for Vigilon Plus, Compact Plus and Nano loops. It combines smoke and heat sensing with spoken alarm messages and sounder tones in one head. The black housing is a colour option, with the same sensor states and sensing channels as the white S4-711-V. It includes a short-circuit isolator and takes power from the loop. The sounder has continuous and alternating tone settings, and the S-Quad speech function allows stored messages to be reprogrammed. The matching S4BK-700 black base is ordered separately. This version has no visual alarm.

The S4BK-711-V combines dual optical smoke detection, heat detection and a voice sounder. Its sensing channels are 1 for forward optical, 2 for heat and 4 for backward optical. Channel 5 reports sounder and speech faults to the control panel. The detector includes a short-circuit isolator and is compatible with Vigilon Plus, Compact Plus and Nano loops.

Read the full technical description

Its EN 54-3 tone settings are continuous 933 Hz and an alternating sequence of 933 Hz for 0.25 seconds followed by 700 Hz for 0.25 seconds. In the S-Quad speech range, stored audio provides an attention tone followed by a message, with up to 20 seconds of audio storage. Factory speech messages can be reprogrammed. Sounder outputs synchronise across all loops of one panel; synchronisation does not extend across a network of panels.

The black S4BK-711-V and white S4-711-V share sensor states and sensing channels. State 0 is the factory setting, combining normal optical smoke sensitivity with Class A1 heat response. Other settings change the optical sensitivity and heat response; State 12 provides Class A1 heat detection with optical sensing off. States 2, 6 and 11 have EN 54-5 approval only. The commissioning tool treats the black and white prefixes alike for equivalent devices.

This model has audible alarm functions without a VAD. The black S4BK-711-V-VAD-HPR combines the same dual optical and heat sensor functions with voice sound and a High Power red visual alarm. Its visual alarm adds coverage and loop-loading requirements to the installation.

The matching black base is S4BK-700, ordered separately. The S-Quad range is loop powered at 35-48 V and has an ABS housing. Range head dimensions are 117 mm diameter by 49.6 mm high, rising to 63.8 mm with the standard base. The range operates from -10°C to +50°C, stores from -20°C to +70°C and accepts up to 95% non-condensing relative humidity from +5°C to +45°C. IP21C applies with the base mounted on an IP21 plate; the matching black plate is S4BK-705. The S4-FLUSH semi-flush surround fits and works with this detector, but its white finish does not match the black body.

Specifications

Sensor type	Dual optical smoke and heat
Alarm functions	Voice sounder and tones
Panel compatibility	Gent Vigilon Plus, Compact Plus and Nano
Body colour	Black
Device marking	O2H/V
Matching base	S4BK-700; ordered separately
Power source	Loop powered
S-Quad range operating voltage	35-48 V
Short-circuit isolator	Integral
Continuous tone setting	933 Hz
Alternating tone setting	933 Hz for 0.25 s / 700 Hz for 0.25 s
S-Quad speech audio storage	Up to 20 seconds
S-Quad speech programming	Factory messages can be reprogrammed

Sounder synchronisation	Across all loops of one panel
Analogue channels	1: forward optical; 2: heat; 4: backward optical; 5: sounder/speech faults
Factory sensor setting	State 0: normal optical sensitivity and Class A1 heat
Detection states	0, 2, 3, 4, 5, 6, 7, 8, 11, 12
State approval restriction	States 2, 6 and 11: EN 54-5 only
White counterpart	S4-711-V; shared sensor states and sensing channels
S-Quad range enclosure	ABS
S-Quad range dimensions	Head: 117 mm diameter × 49.6 mm high; 63.8 mm high with standard base
S-Quad range operating temperature	-10°C to +50°C
S-Quad range storage temperature	-20°C to +70°C
S-Quad range relative humidity	Up to 95%, non-condensing, +5°C to +45°C
S-Quad range ingress protection	IP21C with the base mounted on an IP21 plate
Semi-flush surround	S4-FLUSH fits and works; white finish does not match the black body

Specifications per manufacturer documentation, subject to change. E&OE.

Standards and approvals

Standard	What it covers
LPCB approved	Approved by the Loss Prevention Certification Board for fire detection and alarm system products.
LPCB certificate 042ca Issue 04
LPCB listing 042ca/04
EN 54-3:2001 + A1:2002 + A2:2006
EN 54-5:2002 + A1:2002
EN 54-7:2000 + A1:2002 + A2:2006
EN 54-17:2005 + AC:2007
EN 54-18:2005 + AC:2007
Declaration of Performance 124-CPR-2015

Approval body: Loss Prevention Certification Board (BRE Global Limited), System 1.

Documents

Document	Type	Size	Download
Gent 4188-1073 issue 7 - S-Quad data and installation (white and black)	Installation	7.2 MB	Download PDF

Optional accessories

S4-700Base - Common for all S-Quad SensorsS4-700 / S4BK-700 Sensor base (White/Black)£5.68ex VAT£6.82 inc VATIn stock
S4-701IP21 base and base cover (pack of 1)S4-701 / S4-705 / S4BK-705 IP 21 Sensor Base for S-Quad£10.58ex VAT£12.70 inc VATIn stock
S4-705IP21 base covers (pack 5)S4-701 / S4-705 / S4BK-705 IP 21 Sensor Base for S-Quad£11.37ex VAT£13.64 inc VATIn stock

FAQs

What does the S4BK-711-V add to the S4BK-711 sensor?

The S4BK-711-V adds a voice sounder to dual optical smoke and heat detection. It can give spoken alarm messages and sounder tones from the detector head, while the S4BK-711 is sensor-only. Both models include a short-circuit isolator and work on Vigilon Plus, Compact Plus and Nano loops. The S4BK-711-V has continuous 933 Hz and alternating 933/700 Hz tone settings. For a black detector with voice sound and a High Power red visual alarm, the range includes S4BK-711-V-VAD-HPR.

Can the S4BK-711-V play different spoken messages?

The S-Quad speech function uses audio stored within the device, with an attention tone followed by a spoken message. Its flash memory holds up to 20 seconds of audio, and factory speech messages can be reprogrammed. The S4BK-711-V combines that voice function with dual optical smoke and heat detection. Its tone settings include continuous 933 Hz and an alternating 933/700 Hz sequence. The sounder and speech fault channel reports to the control panel separately from the optical and heat readings.

Will the S4BK-711-V synchronise with sounders on other loops?

Yes. Gent sounder outputs synchronise across all loops of one panel, so a S4BK-711-V can sound with devices on another loop of that panel. Synchronisation does not extend across a network of panels; each panel synchronises its own devices. This model provides voice sound and tones together with smoke and heat sensing. Its continuous 933 Hz and alternating 933/700 Hz settings meet EN 54-3. It works on Vigilon Plus, Compact Plus and Nano addressable fire alarm loops.

What changes between the black S4BK-711-V and white S4-711-V?

The housing colour changes, while the two models share sensor states and sensing channels. Both combine dual optical smoke and heat detection with a voice sounder. State 0 gives normal optical sensitivity and Class A1 heat response, and State 12 provides heat detection with optical sensing off. Their commissioning identification follows the same settings for equivalent black and white devices. The matching black base for S4BK-711-V is S4BK-700, ordered separately. The black model has no visual alarm device.

Which base fits the S4BK-711-V, and how much space does it take?

The S4BK-711-V fits the S4BK-700 black base, which is ordered separately from the detector head. The S-Quad range head is 117 mm in diameter and 49.6 mm high; height rises to 63.8 mm with the standard base. The matching black IP21 plate is S4BK-705. The range achieves IP21C when its base is mounted on an IP21 plate. The ABS enclosure operates from -10°C to +50°C, with non-condensing humidity up to 95% between +5°C and +45°C.
