Gent IP21 base and base cover (pack of 1)
| Part no. | S4-701 |
|---|---|
| Brand | Gent |
| Range | S4 Bases & Accessories |
| Sub-range | Bases |
Image for illustration; item supplied may differ
At a glance
- Base and plate kitIncludes one S4-700 common base and one S4-705 IP21 plate.
- One detector positionPack of one complete base-and-plate assembly.
- Ceiling VAD installationProvides the base and plate arrangement for a ceiling S-Quad detector with an integral VAD.
- Snap-fit plateLocating clips join the plate to the common base.
- Sealed cable entriesPierced openings close around the cable sheath when made smaller than the cable diameter.
- Metal box mountingTwo fixing screws secure the assembly to its metal back box; screws are not included.
Description

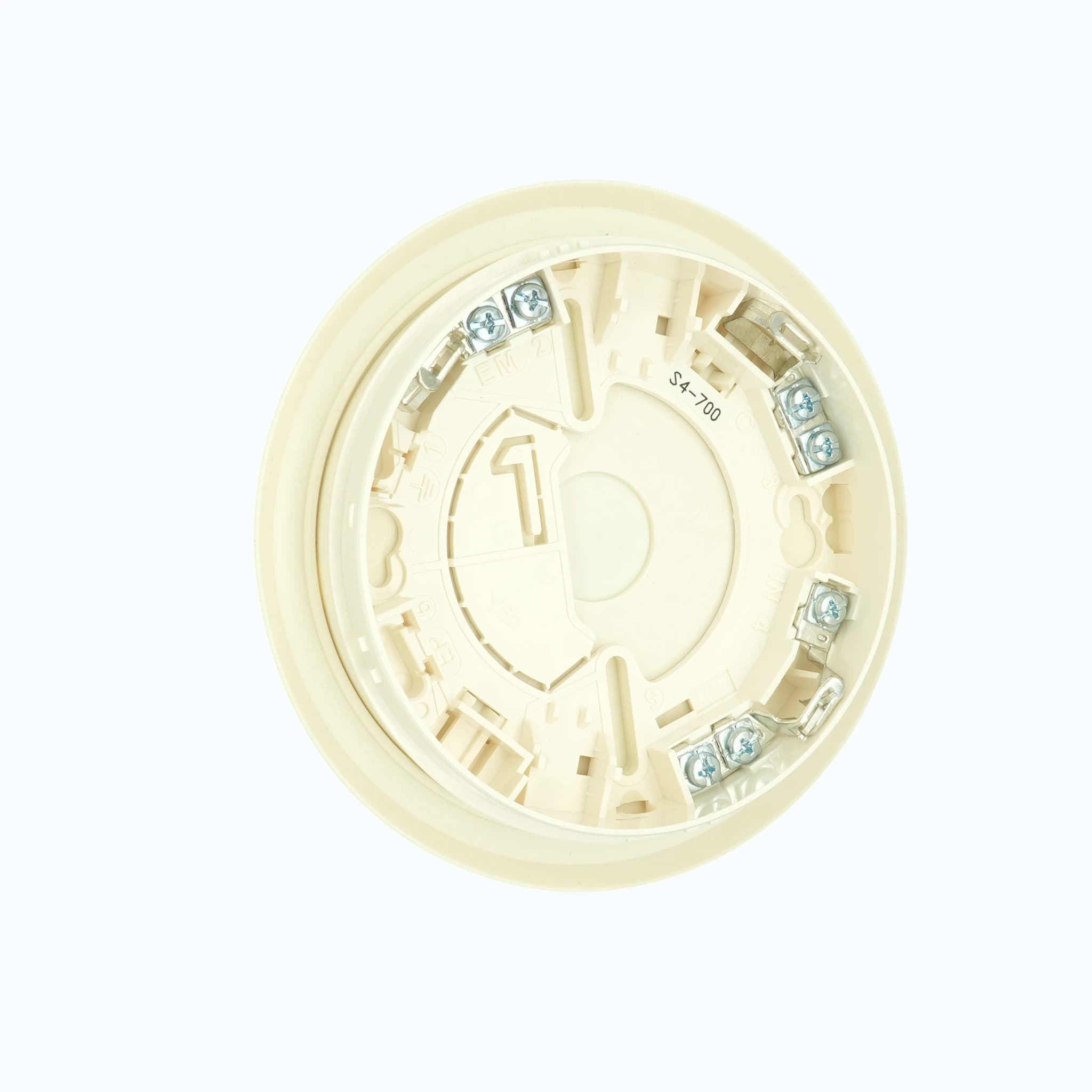

The Gent S4-701 combines an S4-700 common base and an S4-705 IP21 plate in a kit for one S-Quad detector position. The plate sits between the base and the ceiling, with clips that hold the two parts together. It is used for ceiling S-Quad detectors with a built-in VAD. The kit mounts on a metal back box using two screws, with the cable holes pierced to seal around each cable. Its base accepts the detector head with a clockwise twist and provides the loop cable connections. The kit includes one base and one plate; the fixing screws are not included. The head can be secured with the base's locking peg.
The S4-701 supplies the S4-700 common base and S4-705 IP21 plate together for one detector position. For a ceiling S-Quad detector with a built-in VAD, this provides the base and plate in one kit. The white plate sits above the base, between the base and the ceiling.
Read the full technical description
The S4-701 supplies the S4-700 common base and S4-705 IP21 plate together for one detector position. For a ceiling S-Quad detector with a built-in VAD, this provides the base and plate in one kit. The white plate sits above the base, between the base and the ceiling.
Align the elongated holes and press the base and plate together until their clips engage. Pierce each cable opening smaller than the cable diameter so that the plate seals against the outer sheath. For a metal box with 50mm fixing centres, pierce the fixing holes at the inner ends of the elongated slots. The assembly can be fitted at a ceiling tile or solid ceiling.
Secure the base and plate to a metal back box with two suitable fixing screws, which are not included. Maintain loop earth continuity and terminate the earth at the box. Keep spare wire short and flat inside the base. Fit the detector head by turning clockwise until it clicks into position and the marks align.
The included S4-700 base has an optional locking peg. Once fitted, the peg must be reached directly to release the detector head; the standard extractor cannot remotely remove a locked head. For several VAD positions, the S4-705 five-pack supplies plates to use with separate S4-700 bases.
Specifications
| Product type | S-Quad IP21 base and cover kit |
|---|---|
| Pack quantity | 1 kit |
| Included base | 1 × S4-700 |
| Included plate | 1 × S4-705 |
| Plate colour | White |
| Application | Ceiling S-Quad detector with integral VAD |
| Plate position | Between ceiling and base |
| Plate attachment | Snap clips |
|---|---|
| Mounting support | Metal back box |
| Plate fixing centres | 50mm on a standard metal box |
| Fixing screws | 2 required; not included |
| Head attachment | Clockwise twist into S4-700 base |
| Head security | Optional locking peg in included base |
Specifications per manufacturer documentation, subject to change. E&OE.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Datasheet (S4-701, S4-705, S4BK-705) | Datasheet | 453 KB | Download PDF |
Optional accessories
- S4BK-711-V-VAD-HPRS4 Black Dual Optical Heat Sensor Voice Sounder High Power red VADcompatible / works with: S4 Black Dual Optical Heat Sensor Voice Sounder High Power r£232.02ex VAT£278.42 inc VATIn stock
- S4-711-V-VAD-HPRS4 Dual Optical Heat Sensor Voice Sounder High Power red VADUsed by / houses: S4 Dual Optical Heat Sensor Voice Sounder High Pow£148.91ex VAT£178.69 inc VATIn stock
- S4-711-V-VAD-HPWS4 Dual Optical Heat Sensor Voice Sounder High Power White VADUsed by / houses: S4 Dual Optical Heat Sensor Voice Sounder High Pow£209.30ex VAT£251.16 inc VATIn stock
- S4-711-V-VAD-LPRS4 Dual Optical Heat Sensor Voice Sounder Standard Power red VADUsed by / houses: S4 Dual Optical Heat Sensor Voice Sounder Standard£129.77ex VAT£155.72 inc VATIn stock
- S4-711-VAD-HPRS4 Dual Optical Heat Sensor High Power red VADUsed by / houses: S4 Dual Optical Heat Sensor High Power red VAD£121.40ex VAT£145.68 inc VATIn stock
- S4-720-V-VAD-HPRS4 Heat Sensor Voice Sounder High Power red VADUsed by / houses: S4 Heat Sensor Voice Sounder High Power red VAD£119.01ex VAT£142.81 inc VATIn stock
- S4-911-V-VAD-HPRS4 CO Dual Optical Heat Sensor Voice Sounder High Power red VADUsed by / houses: S4 CO Dual Optical Heat Sensor Voice Sounder High£187.77ex VAT£225.32 inc VATIn stock
- S4-911-V-VAD-HPWS4 CO Dual Optical Heat Sensor Voice Sounder High Power White VADUsed by / houses: S4 CO Dual Optical Heat Sensor Voice Sounder High£238.00ex VAT£285.60 inc VATIn stock
+ 3 moreShow fewer
- S4-770-SS4 Optical Heat Sensor SounderUsed by / houses: S4 Optical Heat Sensor Sounder£75.35ex VAT£90.42 inc VATIn stock
- S4-771-SS4 Dual Optical Heat Sensor SounderUsed by / houses: S4 Dual Optical Heat Sensor Sounder£91.50ex VAT£109.80 inc VATIn stock
- S4-780-SS4 Heat Sensor SounderUsed by / houses: S4 Heat Sensor Sounder£82.52ex VAT£99.02 inc VATIn stock
FAQs
What is included in the S4-701 kit?
The S4-701 contains one S4-700 common base and one S4-705 IP21 plate, providing the two parts for a single detector position. The plate clips to the base and sits between it and the ceiling. A metal back box supports the assembly, and two suitable screws secure it to the box. The fixing screws are not included. The detector head fits into the common base with a clockwise turn until it clicks into place and the alignment marks meet.
When is the S4-701 used with an S-Quad detector?
The S4-701 provides the base and IP21 plate for a ceiling S-Quad detector with a built-in VAD. Its plate sits above the base and seals around the cable entries when the holes are pierced smaller than the cable diameter. A detector without a VAD uses the S4-700 common base alone. The S4-701 brings the base and plate together for one position, while separate S4-700 bases and an S4-705 plate five-pack provide the same component arrangement for several positions.
How do the S4-701 base and plate fit together?
Align the elongated holes in the S4-700 base with the corresponding holes in the IP21 plate, then press the parts together until the clips lock. Pierce each cable opening smaller than the cable diameter to form a seal around the sheath. At a metal box with 50mm fixing centres, make the screw openings at the inner ends of the elongated slots. Route the cables through, secure both parts to the box and then make the connections at the base.
Can the S4-701 be fitted to a solid ceiling?
Yes. The base and IP21 plate assembly can be installed at a solid ceiling as well as at a ceiling tile. Align and clip the two parts together, prepare the cable and fixing openings, and secure the assembly to a metal back box. Use two suitable fixing screws, which are not included. Maintain earth continuity through the loop and connect the earth securely to the box. Keep excess wire short and flat inside the base before fitting the detector head.
Can the detector head be locked into the S4-701?
Yes. The S4-701 includes an S4-700 base, which has an optional locking peg. Remove the peg from its base cutout, insert it into the locking position and pierce the matching opening in the detector head. Once the head is secured, removal requires direct access to the peg. Press it inward and rotate the head anticlockwise before lifting the head away. The standard detector extractor cannot release a locked head remotely; the peg must be reached at the detector.
