S4 Detectors

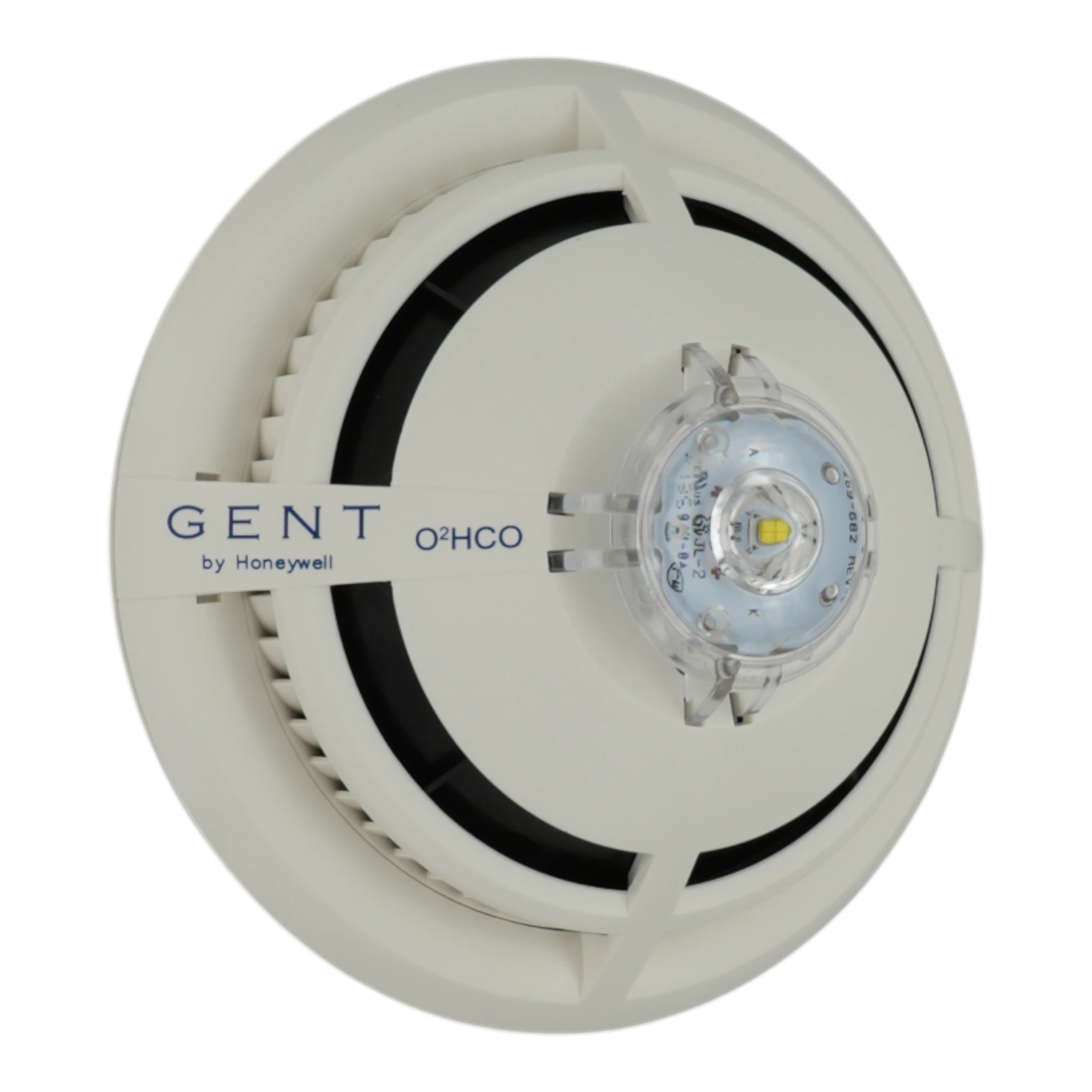

Gent S4-911-V-VAD-HPW Multi-Sensor, Voice Sounder & VAD
- Standards
- EN 54 Parts 3, 5, 7, 17 & 18
- Max quantity per loop
- Up to 100 per loop depending intensity setting
- Sensor type
- Dual Optical, CO & Heat Sensor
- Sensing states
- Eight selectable EN54 sensing states with combinations of optical smoke and Class A1, A2, A2S, B and BS heat sensing enhanced with CO
- Integral sounder
- Integral Sounder (85dbA typical, +3dbA in turbo mode)
- Vad type
- EN54 Visual Alarm Device
- Sound signals
- Integral Sounders will be capable of providing up to 3 different sound signals, which are selected/configured via the main control panel
Required to operate
Needed to install, power or certify this product.
S4-701
IP21 base and base cover (pack of 1)
IP21 base required for the VAD to achieve EN54-23 compliance; IP21 base named in spec.
£10.58
ex VAT
£12.70 inc VAT
Sold separately
S4-700
Base - Common for all S-Quad Sensors
S-Quad sensor plugs into its dedicated S4-700 base
£5.68
ex VAT
£6.82 inc VAT
Sold separately
S4-705
IP21 base covers (pack 5)
VAD/Sounder S-Quad must use Base with IP21 Plate to meet Standards
£11.37
ex VAT
£13.64 inc VAT
Sold separately
S4-700-34K
34000 S-Quad Adapter Base
Detector listed for use with the S4-700-34K adapter base.
£23.57
ex VAT
£28.28 inc VAT
Sold separately
Specifications
Full technical data for this part.
| Standards | EN 54 Parts 3, 5, 7, 17 & 18 |
|---|---|
| Max quantity per loop | Up to 100 per loop depending intensity setting |
| Sensor type | Dual Optical, CO & Heat Sensor |
| Sensing states | Eight selectable EN54 sensing states with combinations of optical smoke and Class A1, A2, A2S, B and BS heat sensing enhanced with CO |
| Integral sounder | Integral Sounder (85dbA typical, +3dbA in turbo mode) |
| Vad type | EN54 Visual Alarm Device |
| Sound signals | Integral Sounders will be capable of providing up to 3 different sound signals, which are selected/configured via the main control panel |
| Sound frequency | 910Hz Low Sound; 970Hz High Sound |
| Bell tone | In addition to the voice messages above, an 8 Inch solenoid bell recording shall be provided as a standard complex tone. |
| Optical sensing | Sensing will be carried out by 2 infra-red LED transmitters using separate optical detection angles, processing both reflection and light absorption properties of particles entering the detection chamber |
| Heat sensing | Will be carried out by a thermistor, sampling the surrounding environmental temperature. |
| Co sensing | The CO element shall be incorporated into the optical chamber to sense the presence of carbon monoxide gas emissions from smouldering fires. The CO element shall have a life expectancy of a minimum of 5 years. This element shall be fault and life monitored. |
| Combined sensing elements | This device will combine four individual sensing elements to provide excellent cover for multiple type of fires (Slow smouldering and fast free burning). |
| Led indicator red | Each sensor will possess an integral red LED giving a flashing indication for a fire signal or a continuous indication for certain fault indications. |
Specifications sourced from manufacturer documentation.
Specifications per manufacturer documentation, subject to change — E&OE. Spotted an inaccuracy? Let us know
