Gent 34000 S-Quad Adapter Base
| Part no. | S4-700-34K |
|---|---|
| Brand | Gent |
| Range | S4 Bases & Accessories |
| Sub-range | 34000 |

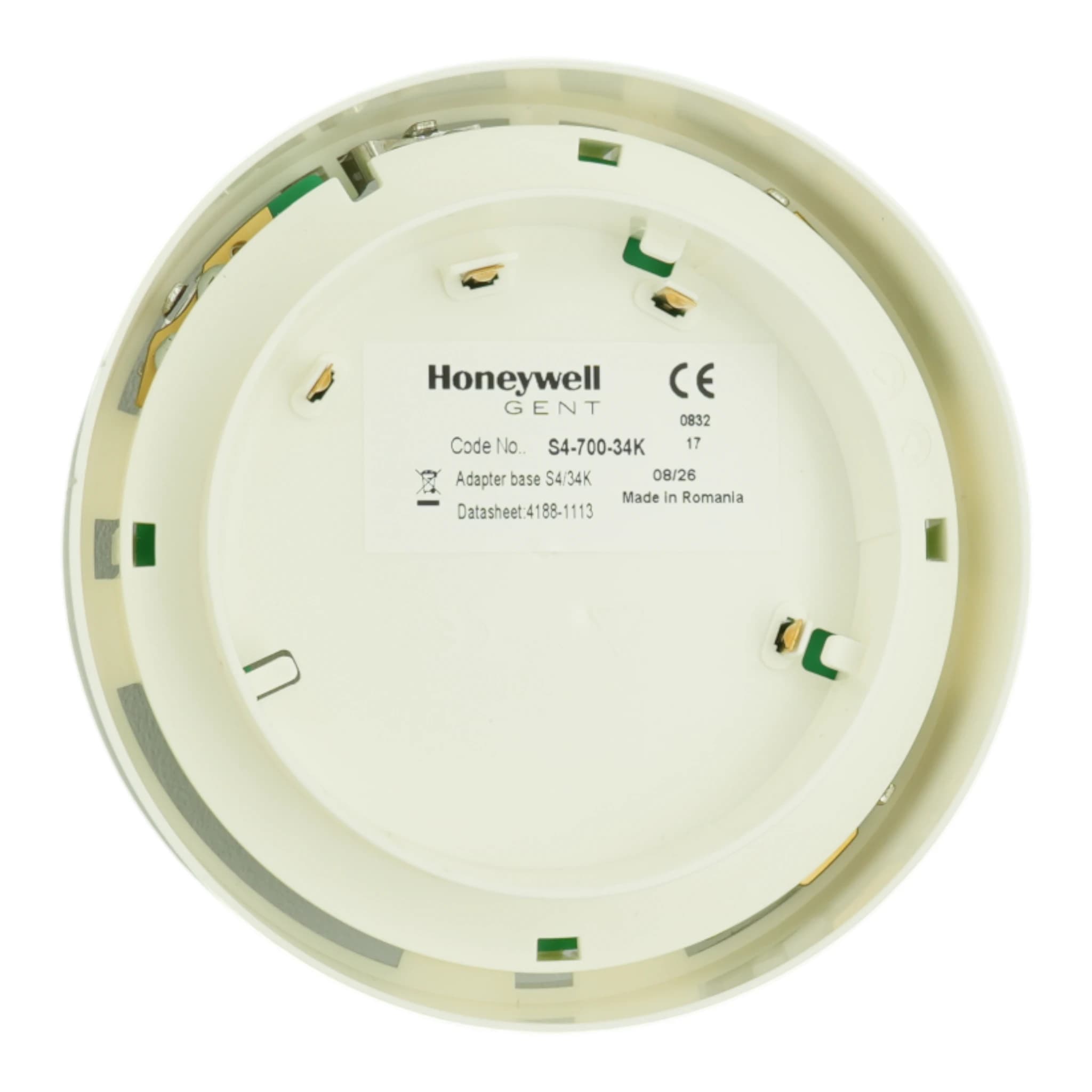

Image for illustration; item supplied may differ
At a glance
- Reuses the 34000 baseFits an S-Quad sensor to an existing 34000 base while retaining the base wiring.
- No separate S-Quad baseThe sensor head fits directly to the adapter before the assembly mounts on the 34K base.
- 3-way and 4-way base fitCompatible with 3-way and 4-way 34000 bases supporting a remote LED.
- Twist engagementThe sensor and adapter connect with alignment marks and a 10-degree clockwise turn.
- White ABS bodyRAL 9010 finish, with an adapter diameter of 112mm and height of 35mm.
- Vigilon retrofit applicationFor S-Quad sensors on Vigilon loops with existing 34K bases and compatible panel card software.
Description
The Gent S4-700-34K adapter lets an S-Quad sensor fit an existing 34000 detector base on a Vigilon loop. It retains the fitted ceiling base and its wiring, with no separate S-Quad base needed. The adapter accepts the sensor head first, then the assembly locks into the ceiling base with a short clockwise turn. It fits 3-way and 4-way 34000 bases supporting a remote LED, but must not be used with a trim ring or flush surround. The white RAL 9010 ABS body measures 112mm in diameter and 35mm high. Compatible Vigilon panel card software and an LDT loop integrity test are required for the installation.
The S4-700-34K connects an S-Quad sensor head to an existing 34000 base on a Vigilon loop. The fitted base and its wiring stay in place, and the sensor attaches through the adapter without a separate S-Quad detector base. Compatible fittings include 3-way and 4-way 34000 bases supporting a remote LED.
Read the full technical description
The S4-700-34K connects an S-Quad sensor head to an existing 34000 base on a Vigilon loop. The fitted base and its wiring stay in place, and the sensor attaches through the adapter without a separate S-Quad detector base. Compatible fittings include 3-way and 4-way 34000 bases supporting a remote LED.
The existing base must be free of a trim ring and must not be installed in a flush surround. Its internal contact plate must sit in the correct position for the adapter to engage. A displaced contact plate needs to be moved into position with a nonconductive tool before the assembly is fitted.
Fit the sensor to the adapter first: align the marks, insert the head and turn it clockwise by 10 degrees until the marks line up. Then align the combined sensor and adapter with the existing ceiling base, insert the assembly and turn it clockwise by 10 degrees to the stop.
The adapter has a white RAL 9010 ABS body, 112mm in diameter and 35mm high, with an operating temperature range of -20°C to +54°C. The Vigilon panel cards need compatible software for the S-Quad installation. After all the adapters have been fitted, test the loop for integrity with the Loop Diagnostic Tool, or LDT.
Specifications
| Product type | 34000 to S-Quad detector base adapter |
|---|---|
| System application | Vigilon loop with existing 34K detector bases |
| Base compatibility | 3-way and 4-way 34000 bases supporting a remote LED |
| Sensor connection | S-Quad sensor fits to adapter; no separate S-Quad base needed |
| Mounting | Sensor and adapter assembly fits the existing ceiling-mounted 34K base |
| Mounting exclusions | 34K bases with a trim ring or installed in a flush surround |
| Locking mechanism | Align, insert and turn clockwise 10 degrees |
| Adapter dimensions | 112mm diameter x 35mm height |
| Material | ABS |
|---|---|
| Colour | White, RAL 9010 |
| Operating temperature | -20°C to +54°C |
| Contact plate | Existing 34K base contact plate must be correctly positioned |
| Panel software | Compatible Vigilon panel card software required |
| Installation test | LDT loop integrity test after all adapters are fitted |
| Box contents | 1 x S4-700-34K adapter base |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| LPCB ancillary listing: 042ca | |
| LPCB ancillary listing: 042ak | |
| LPCB ancillary listing: 042bv | |
| LPCB ancillary listing: 042bw |
Optional accessories
- 805580S-Quad Removal Tool KitS-Quad removal tool kit.£327.18ex VAT£392.62 inc VATIn stock
- S4-711-V-VAD-HPRS4 Dual Optical Heat Sensor Voice Sounder High Power red VADCompatible S-Quad sensor.£148.91ex VAT£178.69 inc VATIn stock
- S4-711-V-VAD-HPWS4 Dual Optical Heat Sensor Voice Sounder High Power White VADCompatible S-Quad sensor.£209.30ex VAT£251.16 inc VATIn stock
- S4-911-V-VAD-HPRS4 CO Dual Optical Heat Sensor Voice Sounder High Power red VADCompatible S-Quad sensor.£187.77ex VAT£225.32 inc VATIn stock
- S4-911-V-VAD-HPWS4 CO Dual Optical Heat Sensor Voice Sounder High Power White VADCompatible S-Quad sensor.£238.00ex VAT£285.60 inc VATIn stock
FAQs
Can the S4-700-34K reuse an existing 34000 base and its wiring?
Yes. The S4-700-34K allows an S-Quad sensor to connect to an existing 34000 base on a Vigilon loop, retaining the base and its wiring. It fits 3-way and 4-way bases supporting a remote LED. The sensor attaches to the adapter, so the assembly does not need a separate S-Quad detector base. The existing base must not have a trim ring or sit in a flush surround, and the Vigilon panel cards need compatible software.
Can the S4-700-34K fit a 34K base with a trim ring or flush surround?
No. A 34K base fitted with a trim ring is excluded, as is a base installed within a flush surround. The S4-700-34K mounts the sensor and adapter assembly onto the existing ceiling base using an aligned, clockwise twist connection. The base also needs its internal contact plate correctly positioned for the adapter to engage. Compatibility with 3-way and 4-way bases supporting a remote LED does not remove these restrictions on the existing base mounting.
How does the S-Quad sensor attach to the S4-700-34K?
Attach the S-Quad sensor head to the adapter before fitting the combined assembly to the 34K ceiling base. Align the marks on the head and adapter, insert the head, then turn it clockwise by 10 degrees until the marks line up. Next, align the sensor and adapter assembly with the existing 34K base, insert it and turn clockwise by 10 degrees to the stop. The existing ceiling base stays in place throughout this fitting sequence.
What can prevent the S4-700-34K from engaging with a 34K base?
An incorrectly positioned contact plate inside the existing 34K base prevents the adapter from fitting. Inspect the contact plate before inserting the sensor and adapter assembly. If the plate is displaced, move it into the correct position with a nonconductive tool. The existing base must also be free of a trim ring and must not sit in a flush surround. Once the contact plate is correctly positioned, align the assembly with the base before inserting and turning it.
What software compatibility and testing does an S4-700-34K installation need?
The Vigilon panel cards must have software compatible with the S-Quad sensor and adapter assembly operating on the loop. After all S-Quad sensors and adapters have been fitted to the existing 34K bases, the loop needs an integrity test using the Loop Diagnostic Tool, or LDT. The test applies to the completed loop installation. Retaining the old bases and wiring through the S4-700-34K adapter does not remove the requirement for compatible panel card software or this integrity test.
