Gent Black IP21 base covers (pack 5)
| Part no. | S4BK-705 |
|---|---|
| Brand | Gent |
| Range | S4 Bases & Accessories |
| Sub-range | Bases |
Image for illustration; item supplied may differ
At a glance
- Five platesPack of five black IP21 base covers.
- S-Quad VAD installationUsed above the common base for a ceiling S-Quad detector with an integral VAD.
- Matching basePairs with the S4BK-700 for a black base-and-plate installation.
- Snap-fit clipsLocating clips hold the plate and base together.
- Cable entry sealsPierce openings smaller than the cable diameter to close around the sheath.
- Ceiling mountingFits between the common base and a solid ceiling or ceiling tile.
Description

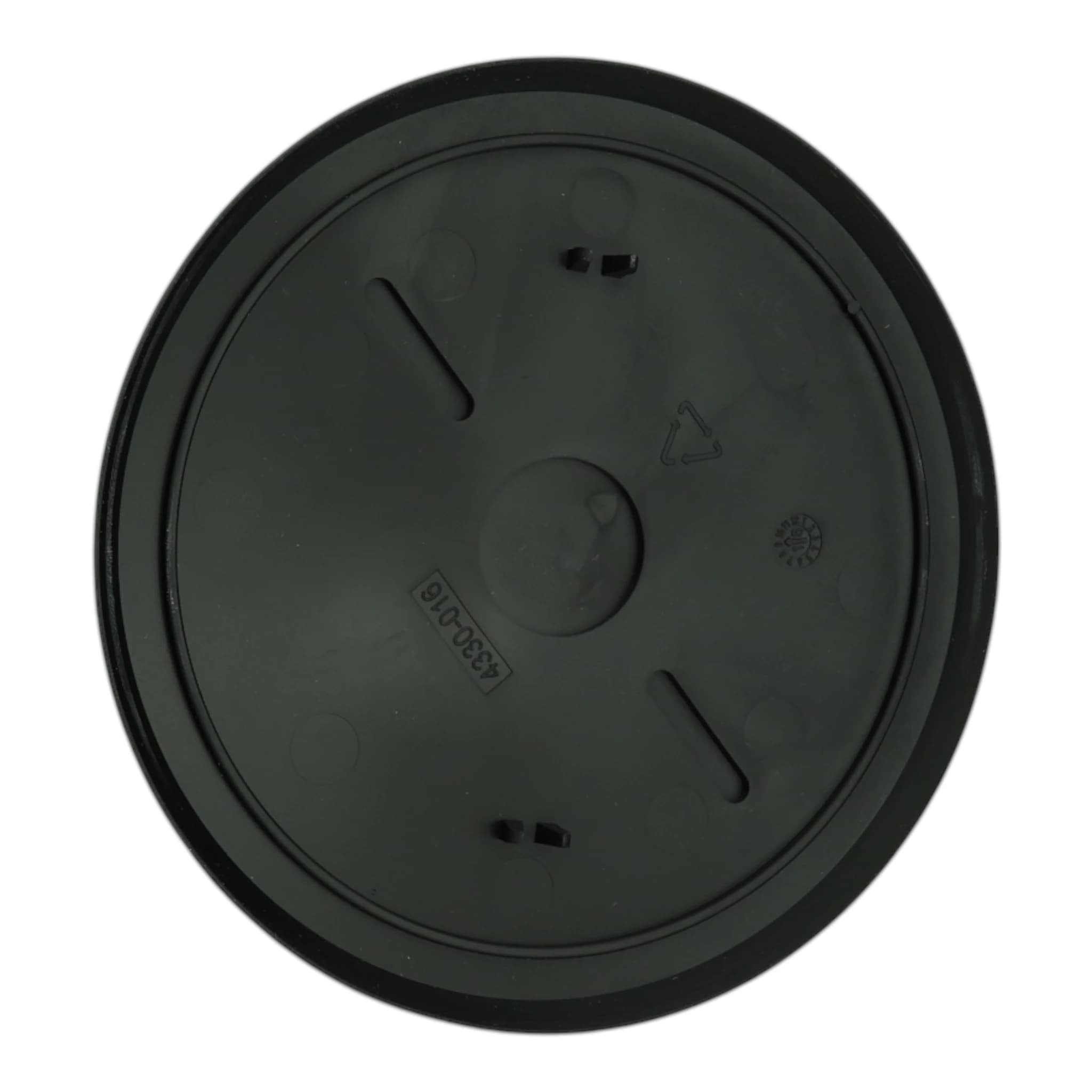

The Gent S4BK-705 is a pack of five black IP21 base covers for S-Quad installations. Each plate fits between the common base and the ceiling at one detector position. For a ceiling S-Quad detector with a built-in VAD, it is used with the S4BK-700 base. The plate clips to the base and seals around the cable entries when the holes are pierced smaller than the cable. Align the fixing slots, then secure the base and plate to a metal back box with two screws. The pack provides plates for five bases. The bases and fixing screws are supplied separately. The locating clips hold the base and plate together during fitting.
The S4BK-705 contains five black IP21 plates. Each plate is paired with one common base, giving a plate for each of five detector positions. Use the S4BK-700 base for a matching black installation. The plate sits between the base and the ceiling.
Read the full technical description
The S4BK-705 contains five black IP21 plates. Each plate is paired with one common base, giving a plate for each of five detector positions. Use the S4BK-700 base for a matching black installation. The plate sits between the base and the ceiling.
For ceiling S-Quad detectors with an integral VAD, the plate forms part of the base assembly. A non-VAD detector uses the common base alone. The plate clips to the base after the elongated holes have been aligned.
Pierce the thinned cable entry area for each cable, keeping the opening smaller than the cable diameter so that it seals against the sheath. At a standard metal box with 50mm fixing centres, pierce the screw openings at the inner ends of the elongated slots. Route the cables through the plate and base before securing them to the box.
Two suitable screws secure the base and plate to the metal box; these are supplied separately. The arrangement can be fitted at a ceiling tile or a solid ceiling. The pack contains the plates, with the common bases supplied separately.
Specifications
| Product type | IP21 base cover / mounting plate |
|---|---|
| Colour | Black |
| Pack quantity | 5 plates |
| Plate allocation | 1 per detector base |
| Matching base | S4BK-700 |
| Application | Ceiling S-Quad detector with integral VAD |
| Position | Between ceiling and common base |
| Attachment to base | Snap clips |
| Mounting support | Metal back box |
| Fixing centres | 50mm on a standard metal box |
| Fixing screws | 2 per assembly; supplied separately |
Specifications per manufacturer documentation, subject to change. E&OE.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Datasheet (S4-701, S4-705, S4BK-705) | Datasheet | 453 KB | Download PDF |
Optional accessories
- S4BK-711-V-VAD-HPRS4 Black Dual Optical Heat Sensor Voice Sounder High Power red VADcompatible / works with: S4 Black Dual Optical Heat Sensor Voice Sounder High Power r£232.02ex VAT£278.42 inc VATIn stock
- S4BK-711-VS4 Black Dual Optical Heat Sensor Voice SounderUsed by / houses: S4 Black Dual Optical Heat Sensor Voice Sounder£181.20ex VAT£217.44 inc VATIn stock
FAQs
How many bases does a pack of S4BK-705 cover?
The S4BK-705 pack contains five black IP21 plates, with one plate used at each detector base. One pack therefore provides plates for five bases. Each plate clips to its base and sits between the base and the ceiling. The common bases are supplied separately. For a matching black assembly, use the S4BK-700. Each base-and-plate assembly is secured to a metal back box with two suitable screws, which are also supplied separately from the plate pack.
When does an S-Quad installation need the S4BK-705?
A ceiling S-Quad detector with an integral VAD uses an IP21 plate with its common base. The S4BK-705 is the black plate pack for that arrangement. A detector without a VAD uses the common base alone. The plate sits between the base and the ceiling, with the cable openings pierced smaller than the cable diameter to seal around the sheath. Each pack supplies five plates, so it provides the plate component for five separate detector positions.
How is the S4BK-705 attached to its base?
Align the elongated holes in the S4BK-705 plate with those in the common base and press the parts together until the locating clips engage. Pierce the cable entry area for each cable, keeping each opening smaller than the cable diameter. For a standard metal box with 50mm fixing centres, pierce the screw openings at the inner ends of the elongated slots. Route the cables through the plate and base, then secure the assembly to the box with suitable screws.
Can the S4BK-705 be used at a solid ceiling?
Yes. The S4BK-705 plate and common base can be installed at a solid ceiling or at a ceiling tile. The plate sits between the base and the ceiling in either arrangement. Clip the parts together, prepare the cable and fixing holes, then secure them to a metal back box with two suitable screws. The plate pack contains five covers, with the bases and fixing screws supplied separately. At a standard box, the plate fixing openings are positioned at 50mm centres.
Which base goes with the S4BK-705?
The S4BK-700 is the matching black common base for the S4BK-705 IP21 plate. Each plate clips above one base to form the mounting arrangement for a ceiling S-Quad detector with an integral VAD. Align the elongated fixing holes before pressing the parts together. The assembled base and plate are then secured to a metal back box. The S4BK-705 pack contains five plates, while the bases are supplied separately; one plate is used for each detector position.
