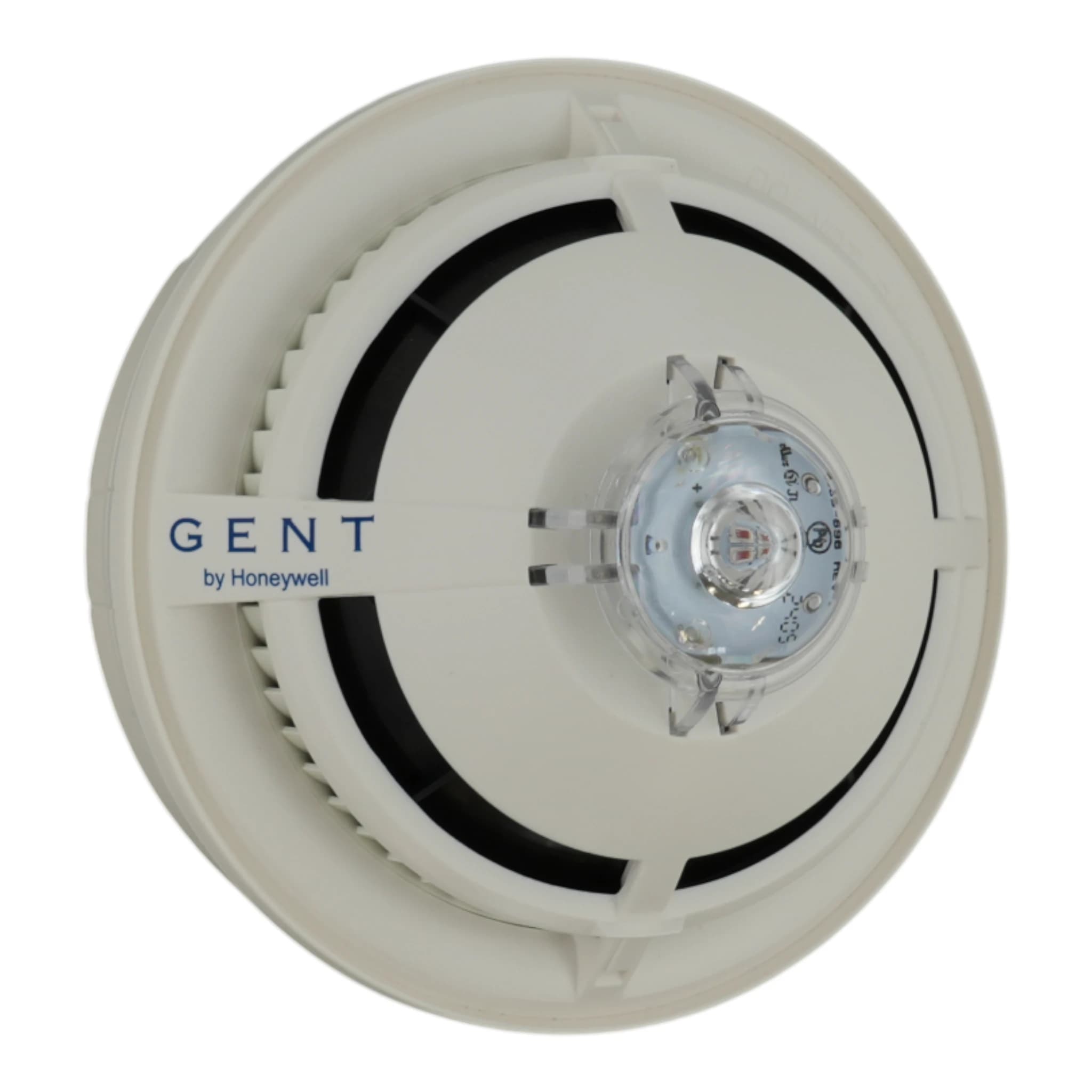

Gent S4T-720-V-VAD-HPR Self-Test Heat, Voice & Red VAD
- Operating voltage
- 35V - 48V
- Ambient operating temperature
- -10 °C to +50 °C
- Storage temperature
- -20 °C to +65 °C
- Relative humidity
- 95 % non-condensing (+5 °C to +45 °C)
- Ingress protection
- IP21C
- Enclosure material
- Terluran GP-35 (ABS) for outer housing
- Dimensions
- Sensor head: 117 mm diameter by 63 mm height (with Base the height increases to 70 mm)
Required to operate
Needed to install, power or certify this product.
Fixed CLSS Gateway (Ethernet and Wi-Fi)
requires a CLSS gateway (1 per network domain)
Base - Common for all S-Quad Sensors
Mounting base common to all S-Quad Self-Test sensors
Overview
What it is and how it fits the system.
The Gent S4T-720-V-VAD-HPR is an S4 SELF-TEST Heat Sensor with Voice Sounder and High Power Red VAD from the S-Quad Self-Test (S4T) series, combining heat detection with integrated audible and visual alarm. It operates on a 35V-48V loop across -10°C to +50°C, is rated IP21C, and supports Bluetooth testing at up to 10m. The ABS sensor head measures 117mm in diameter by 63mm high and weighs 152g.
Technical overview
S4T-720-V-VAD-HPR is a Gent by Honeywell S4 SELF-TEST Heat Sensor with Voice Sounder and High Power Red VAD from the S-Quad Self-Test (S4T) series. It integrates heat detection with audible voice alarm and visual alert functions in a single multi-sensor unit designed for fire alarm systems.
The device operates on a 35V - 48V loop voltage and functions within an ambient temperature range of -10 °C to +50 °C, with storage limits from -20 °C to +65 °C. It is rated IP21C for ingress protection and features an ABS Terluran GP-35 enclosure. The sensor head measures 117 mm in diameter by 63 mm in height, increasing to 70 mm when mounted on the standard base, and weighs 152 g without base or 212 g with it.
Bluetooth testing is supported at up to 10m range, requiring the CLSS mobile app and a CLSS gateway per network domain. Self-test functionality operates for heat and smoke detection within an expected temperature range of 0 to 40 °C. The unit is compatible with Vigilon and Compact Plus panels only and requires current EN54 loop cards with firmware upgrades for Self-Test and BLE operation. Associated products include the S4-700 mounting base, S4-705 IP21C plate, label packs, dust covers, and removal tools. Physical wiring details are provided in the S-Quad Data and Installation Guide. Certifications include EN54, LPCB, UKCA, and CE approval.
Specifications
Full technical data for this part.
| Operating voltage | 35V - 48V |
|---|---|
| Ambient operating temperature | -10 °C to +50 °C |
| Storage temperature | -20 °C to +65 °C |
| Relative humidity | 95 % non-condensing (+5 °C to +45 °C) |
| Ingress protection | IP21C |
| Colour | White : RAL 9010 Black : RAL 9005 |
| Enclosure material | Terluran GP-35 (ABS) for outer housing |
| Dimensions | Sensor head: 117 mm diameter by 63 mm height (with Base the height increases to 70 mm) |
| Weight | Sensor head only: 152 g (with Standard base - 212 g) |
| Bluetooth range | 10m |
| Air velocity for fire detection | 0 to 20 m/s |
| Air velocity around device | 0 to 1.5 m/s |
| Heat self test temperature range | 0 to 40 °C expected |
| Smoke self test temperature range | 0 to 40 °C expected |
Specifications sourced from manufacturer documentation.
Specifications per manufacturer documentation, subject to change — E&OE. Spotted an inaccuracy? Let us know
Enhancements (optional)
Optional additions — this product works without them.
IP21 base covers (pack 5)
Associated products include S4-705 White IP21C plate
S-Quad Base Label Plate (pack of 10)
Associated products include 805576 Label plate (10 pack)
S-Quad Removal Tool Kit
Associated products include 805580 Removal tool kit (supplied with Dust Cover Remover part
S-Quad Semi-Flush Mounting Kit
Semi-flush mounting kit for S-Quad Self-Test device
Remote LED (for use with common base S4-700)
External repeat LED driven by device I/O
