Gent S-Quad Semi-Flush Mounting Kit
| Part no. | S4-FLUSH |
|---|---|
| Brand | Gent |
| Range | S4 Bases & Accessories |
| Sub-range | Flush |

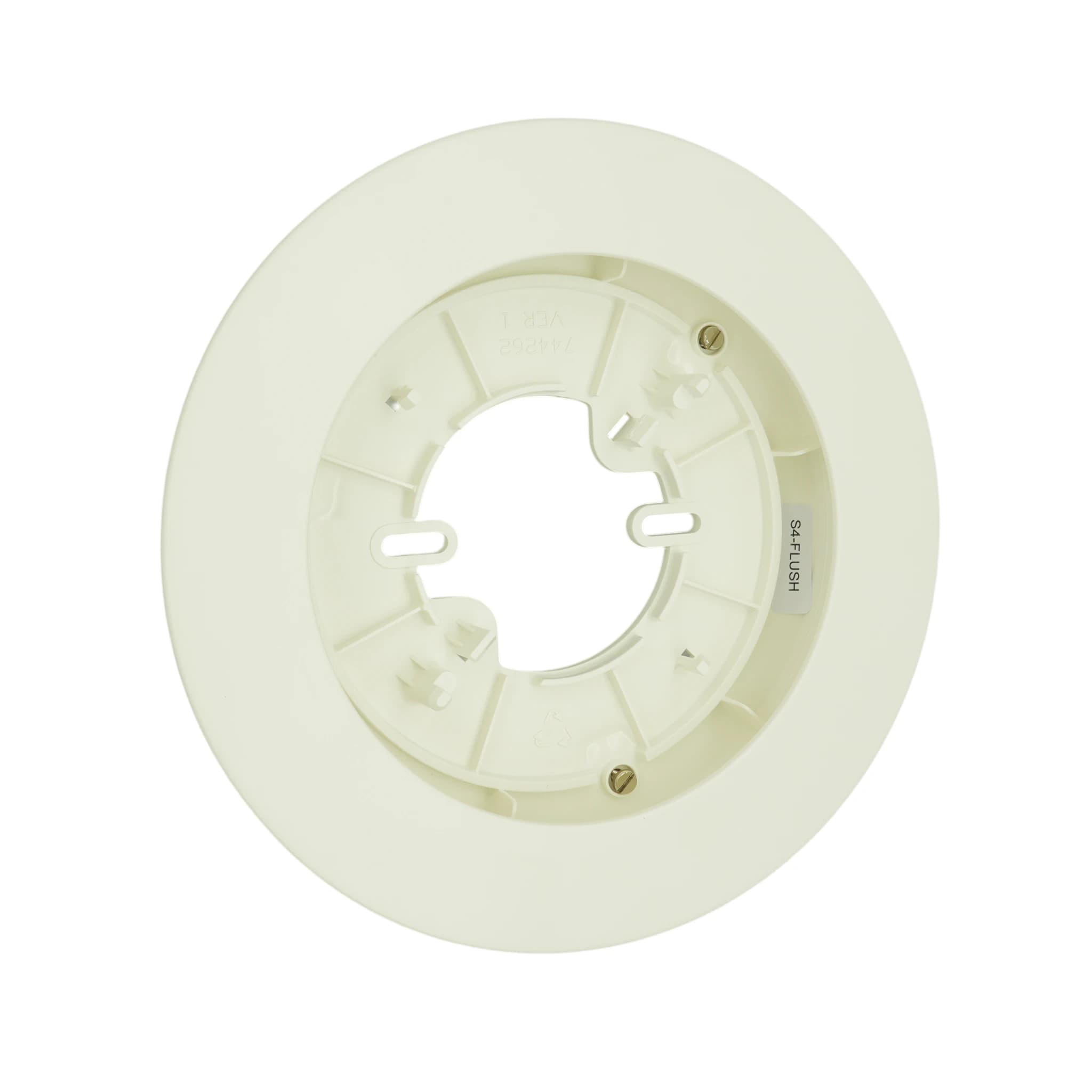

Image for illustration; item supplied may differ
At a glance
- White S-Quad fitSemi-flush housing for the white S-Quad range.
- Recessed mountingPositions the device approximately 20mm into a ceiling tile.
- Housing and trim ringThe trim ring turns clockwise to lock onto the housing.
- 140mm cut-outThe housing fits a circular opening in the ceiling tile.
- Ceiling tile fixingScrew-operated clamps hold the housing against the tile.
- Common base fitThe S4-700 base aligns with locating pillars and clicks into the housing.
Description
The Gent S4-FLUSH is a semi-flush mounting kit for white S-Quad detector heads. The kit contains a main housing, a trim ring and two fitted screws. It recesses the device approximately 20mm into a ceiling tile and fits a 140mm circular opening. Screw-operated clamps secure the housing to the tile. An S4-700 base aligns with locating pillars and clicks into the housing. A metal back box fits at the rear. The trim ring locks with a clockwise turn before the detector head is fitted. The ABS kit is white RAL 9010, measures 174mm in diameter by 50mm deep and weighs 164g including the trim ring.
The S4-FLUSH provides a semi-flush mounting arrangement for the white S-Quad range. Its main housing and trim ring recess the device into a ceiling tile by approximately 20mm. The kit includes two fitted screws. The ABS kit is white RAL 9010, measures 174mm in diameter by 50mm deep and weighs 164g with the trim ring.
Read the full technical description
The S4-FLUSH provides a semi-flush mounting arrangement for the white S-Quad range. Its main housing and trim ring recess the device into a ceiling tile by approximately 20mm. The kit includes two fitted screws. The ABS kit is white RAL 9010, measures 174mm in diameter by 50mm deep and weighs 164g with the trim ring.
Cut a 140mm diameter opening in the ceiling tile and insert the housing. Tighten its clamp screws to spread the clamps and secure it to the tile. Avoid overtightening, which can cause the clamps to cut into the tile. Fit a metal back box to the rear of the housing with suitable screws and maintain loop earth continuity at the box.
Align the two locating pillars in the housing with the elongated holes in the S4-700 base, then press the base into place until it clicks. Make the cable connections. Turn the trim ring clockwise until it locks, then fit the detector head to the base with a clockwise turn until it reaches its stop.
The kit has an ambient temperature range of −10°C to +50°C and a storage range of −20°C to +70°C. Its humidity limit is 95% non-condensing at +5°C to +45°C. The S4-700 common base fits inside the housing beneath the rear metal box.
Specifications
| Product type | S-Quad semi-flush mounting kit |
|---|---|
| Detector body range | White S-Quad |
| Kit components | Main housing, trim ring and two fitted screws |
| Dimensions | 174mm diameter × 50mm depth |
| Weight | 164g including trim ring |
| Colour | White RAL 9010 |
| Material | ABS |
| Approximate recess | 20mm into ceiling tile |
|---|---|
| Ceiling cut-out | 140mm diameter |
| Housing fixing | Screw-operated clamps |
| Common base | S4-700; separate component |
| Temperature | Ambient −10°C to +50°C; storage −20°C to +70°C |
| Relative humidity | 95% non-condensing at +5°C to +45°C |
Specifications per manufacturer documentation, subject to change. E&OE.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| gent honeywell S4 Sensor Sounder Speech Strobe rangedata and installation | Installation | 5.3 MB | Download PDF |
Optional accessories
- S4-700Base - Common for all S-Quad SensorsCommon base used inside the semi-flush housing.£5.68ex VAT£6.82 inc VATIn stock
FAQs
Which detector range does the S4-FLUSH fit?
The S4-FLUSH provides semi-flush mounting for the white S-Quad detector range. The kit uses a main housing and trim ring, with an S4-700 common base fitted into the housing and the detector head fitted into that base. The housing is secured through a ceiling tile using screw-operated clamps, with a metal back box at the rear. It gives an approximate 20mm recess into the tile and has an overall diameter of 174mm with a depth of 50mm.
What size ceiling hole does the S4-FLUSH need?
The S4-FLUSH fits a 140mm diameter opening in the ceiling tile. Insert the housing through the opening and tighten its clamp screws so that the clamps spread and secure it to the tile. Do not overtighten them, as the clamps can cut into the tile. The finished kit measures 174mm across and 50mm deep, with the detector recessed by approximately 20mm. A metal back box is fixed to the rear of the housing before the base is installed.
Does the S4-FLUSH use an S4-700 base?
Yes. The S4-FLUSH housing accepts an S4-700 common base as a separate component. Align the two locating pillars in the housing with the elongated holes in the base, then press the base into the housing until it clicks into position. Make the cable connections before fitting the trim ring and detector head. The loop earth must remain continuous and connect securely to the metal back box at the rear of the housing. The detector head then twists into the base.
How are the S4-FLUSH trim ring and detector fitted?
After the housing has been clamped to the ceiling tile and the base is fixed and wired, offer the trim ring to the housing. Turn the ring clockwise until it clicks and will turn no further. Offer the white S-Quad head to the base and turn it clockwise until it rises into position, then continue until it clicks and stops. The housing, base, trim ring and head are fitted in that sequence, with the metal back box secured at the rear.
What are the S4-FLUSH material and environmental limits?
The S4-FLUSH is an ABS mounting kit in white RAL 9010. It measures 174mm in diameter by 50mm deep and weighs 164g including its trim ring. The kit has an ambient temperature range of −10°C to +50°C and a storage range of −20°C to +70°C. Its relative humidity limit is 95% non-condensing at +5°C to +45°C. It provides a housing and trim ring for semi-flush installation through a ceiling tile, with an S4-700 base and rear metal back box.
