Gent 34740 Angle Bracket + Base

Part no.S4-34741-01
BrandGent
RangeS4 Beam Detectors
Sub-rangeBeam Brackets

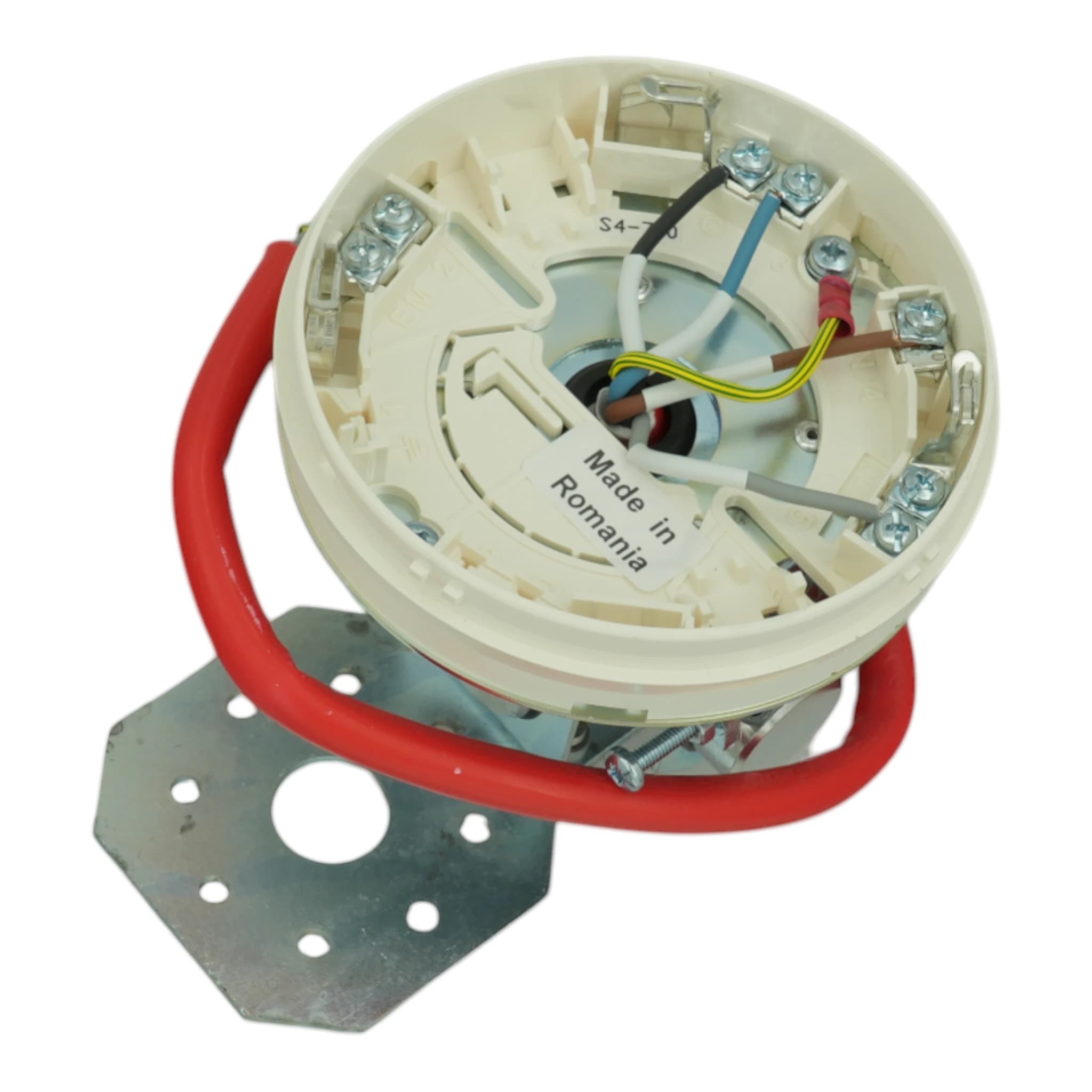

Gent by Honeywell S4-34741-01 34740 Angle Bracket + Base — cream circular base with red metal bracket and visible wiring

Image for illustration; item supplied may differ

At a glance

  • Bracket and base assemblyCarries one S4-34741 transmitter or S4-34742 receiver.
  • Two-axis adjustmentMoves the fitted head in the X and Y axes during alignment.
  • Central-stop adjustmentUp to ±25° in each axis with the pivot stop centred.
  • Alternative pivot positionsThe pivot stop can be repositioned for a wider angle.
  • Locknut securingAdjuster locknuts secure the selected direction.
  • Assembled dimensions145mm high × 106mm wide × 130mm deep, approximately 620g.

Description

The Gent S4-34741-01 is an angle bracket with base for one S4 beam sensor head. It holds either the S4-34741 transmitter or S4-34742 receiver and lets the head turn in two axes to face the other end of the beam. With the pivot stop in its centre position, it allows up to ±25° movement in each axis. The screws set the angle and the locknuts hold that setting. The bracket and base measure 145mm high, 106mm wide and 130mm deep, and weigh about 620g. An S4-34740 pair uses one bracket and base at each end, with the sensors supplied separately. The assembly mounts on a metal box fixed to a solid wall.

The S4-34741-01 combines the angle bracket and sensor base used to mount an S4-34741 transmitter or S4-34742 receiver. The head fits to the base after the bracket is installed. The S4-34740 pair uses a transmitter and receiver at opposite ends of the beam path, each on its own bracket and base assembly.

Read the full technical description

The S4-34741-01 combines the angle bracket and sensor base used to mount an S4-34741 transmitter or S4-34742 receiver. The head fits to the base after the bracket is installed. The S4-34740 pair uses a transmitter and receiver at opposite ends of the beam path, each on its own bracket and base assembly.

The bracket moves in the X and Y axes. With the pivot stop in the central factory position, adjustment is up to ±25° in each axis. Moving the pivot stop to another position allows a wider angle. The adjuster screws aim the base towards the opposite head, and the locknuts secure the final settings.

The angle bracket mounts on a metal box fixed to a solid wall. Its base connects the sensor to the loop. During commissioning, the head's LED display shows the signal level while the bracket is adjusted. Alignment is completed with receiver AutoGain at the panel after both ends have been adjusted.

The assembled bracket and base measure 145mm high by 106mm wide by 130mm deep and weigh approximately 620g. The S4-34741-03 parallel bracket with base provides another mounting option, with up to ±8° adjustment in each axis. The sensor head is a separate item from either bracket assembly.

Supplied with an angle bracket and wired sensor base, a round metal cover plate, a black gasket, two loose screws and a four-way terminal strip.

Specifications

Product codeS4-34741-01
Product formAngle bracket with sensor base
Compatible transmitterS4-34741
Compatible receiverS4-34742
Sensor capacityOne head per bracket and base assembly
Adjustment axesX and Y
Central-stop adjustmentUp to ±25° in each axis
Pivot stopCentral factory position; alternative positions available
Position securingAdjuster screws and locknuts
Assembled dimensions145mm height × 106mm width × 130mm depth
Assembled weightApproximately 620g including base
Mounting arrangementMetal box fixed to solid wall
Supplied contentsAngle bracket with wired sensor base, round metal cover plate, black gasket, two loose screws and four-way terminal strip

Specifications per manufacturer documentation, subject to change. E&OE.
