Gent Obscuration test card set
| Part no. | S4-34741-50 |
|---|---|
| Brand | Gent |
| Range | S4 Beam Detectors |
| Sub-range | Beam Accessories |

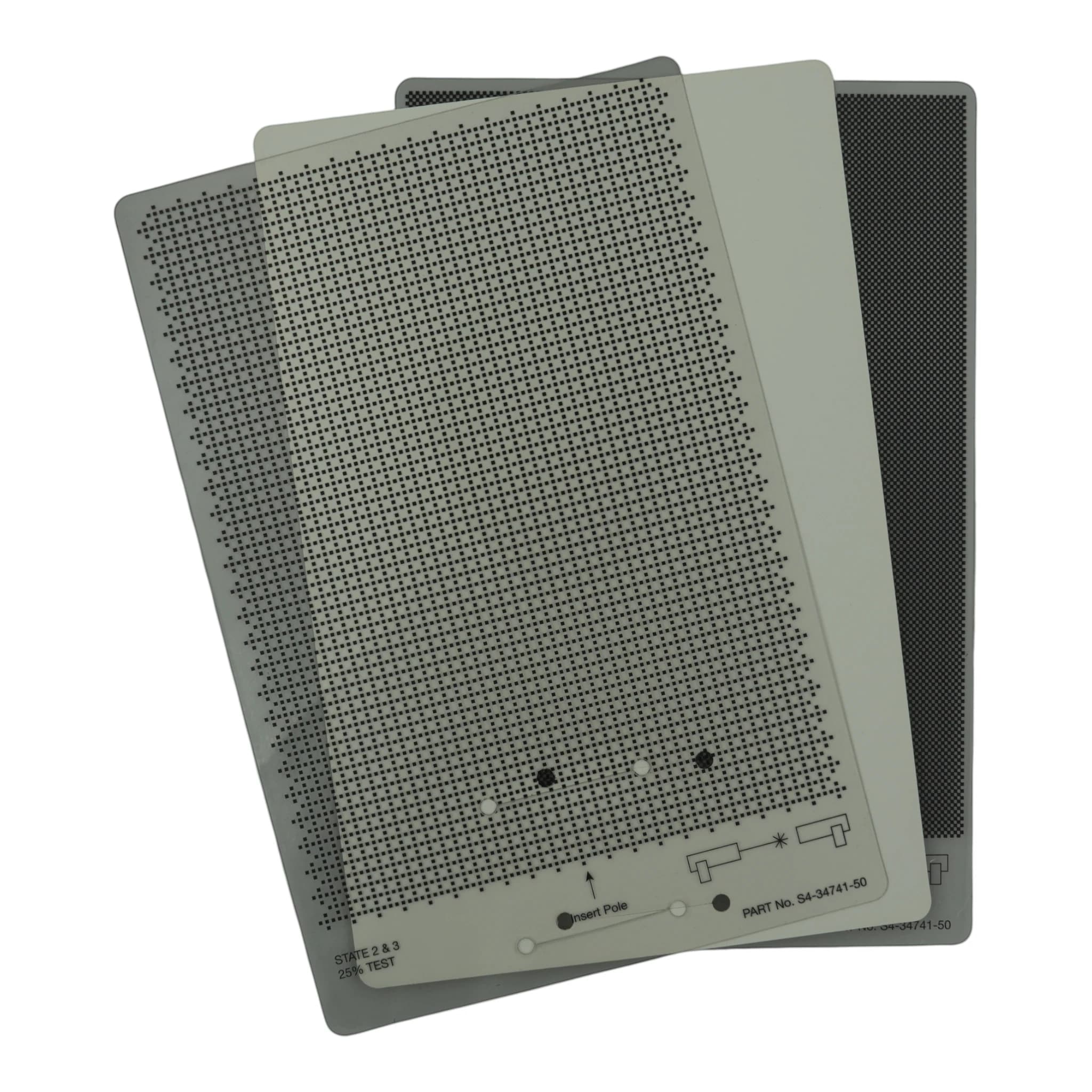

Image for illustration; item supplied may differ
At a glance
- S4 beam test accessoryUsed with the commissioned transmitter and receiver pair.
- Controlled beam obscurationThe card sits in the beam path for the fire test.
- States 0 and 1 testUse 50% obscuration for the fire test.
- States 2 and 3 testUse 25% obscuration for the fire test.
- Pole test arrangementThe card can be held on a smoke pole with adhesive tape.
- Receiver and panel indicationA fire test is indicated at the receiver and the panel.
Description
The Gent S4-34741-50 is an obscuration test card set for the S4 beam sensor pair. It is used after the transmitter and receiver have been aligned and commissioned, to test the response when the beam is obscured. The fire test uses a 50% card in receiver states 0 and 1, or a 25% card in states 2 and 3. The chosen state also sets how the pair responds to a fully blocked beam. The card is placed in the beam path, with a smoke pole and tape used to hold it in position. A fire test gives an indication at the receiver and the panel. Test responses depend on the receiver's configured smoke sensitivity state.
The S4-34741-50 test card set is used on the commissioned S4-34740 beam sensor pair, consisting of the S4-34741 transmitter and S4-34742 receiver. The card is placed in the beam path to test the detector response. The receiver's operating state determines the required obscuration test.
Read the full technical description
The S4-34741-50 test card set is used on the commissioned S4-34740 beam sensor pair, consisting of the S4-34741 transmitter and S4-34742 receiver. The card is placed in the beam path to test the detector response. The receiver's operating state determines the required obscuration test.
For states 0 and 1, the fire test uses a 50% obscuration card. For states 2 and 3, it uses a 25% card. States 0 and 2 have a fault test that blocks the beam with cardboard for 40 seconds. In states 1 and 3, a complete blockage for 40 seconds forms a fire test.
The test card can be held on a smoke pole with adhesive tape and positioned across the beam. The receiver is the only head that indicates fire locally; the fire alarm panel also indicates fire.
Complete beam alignment and commissioning before carrying out the card tests. Alignment uses the signal LEDs on both heads, with bracket adjustments at each end and final receiver AutoGain from the panel. The card test then exercises the pair at its selected receiver state.
Specifications
| Product code | S4-34741-50 |
|---|---|
| Product form | Obscuration test card set |
| Detector pair | S4-34740 |
| Pair components | S4-34741 transmitter and S4-34742 receiver |
| Use stage | After alignment and commissioning |
| States 0 and 1 fire test | 50% obscuration card |
| States 2 and 3 fire test | 25% obscuration card |
| States 0 and 2 fault test | Complete beam blockage with cardboard for 40 seconds |
| States 1 and 3 blockage test | Complete beam blockage for 40 seconds produces fire |
| Fire indication | Receiver and panel |
Specifications per manufacturer documentation, subject to change. E&OE.
Optional accessories
- S4-34740Beam Sensor Pair (Transmitter and Receiver) excl bracket and BaseUse test cards on the commissioned pair.£663.78ex VAT£796.54 inc VATIn stock
- S4-34741Beam Sensor TransmitterUse test cards on the commissioned pair.£575.88ex VAT£691.06 inc VATIn stock
- S4-34742Beam Sensor ReceiverUse test cards on the commissioned pair.£575.88ex VAT£691.06 inc VATIn stock
FAQs
Which detector pair uses this test card set?
The S4-34741-50 test cards are used with the S4-34740 beam sensor pair, formed by an S4-34741 transmitter and S4-34742 receiver. The cards are placed in the beam path after alignment and commissioning are complete. The receiver's operating state sets the required obscuration level for the fire test. A 50% card is used for states 0 and 1, while a 25% card is used for states 2 and 3. Fire is indicated at the receiver and panel.
Which card is used for a fire test?
For receiver states 0 and 1, use a 50% obscuration card in the beam path. For states 2 and 3, use a 25% card. The beam pair must be fully commissioned before the test. Place the card across the beam and observe the fire indication at the receiver and panel. The test arrangement can use adhesive tape to hold the card on a smoke pole. The transmitter does not provide the local fire indication during this test.
How is the fault test carried out?
For receiver states 0 and 2, cover the beam completely with cardboard and keep it covered for 40 seconds to test the fault response. These states treat a rapid, sustained obstruction as a fault. States 1 and 3 respond to that complete blockage as a fire condition, so the same action is part of their fire test. The test response therefore depends on the receiver's selected state. Carry out the tests after the transmitter and receiver have been aligned and commissioned.
Can the card be used on a smoke pole?
Yes. The test card can be fixed to a smoke pole with adhesive tape and placed in the path between the transmitter and receiver. For the fire test, use the card that matches the receiver state: 50% for states 0 and 1, or 25% for states 2 and 3. The pair must be commissioned before testing. Observe the receiver and panel for the fire indication; the receiver is the only head that indicates fire locally.
Is card testing part of beam alignment?
The card tests follow completed alignment and commissioning. Alignment starts with the transmitter and receiver facing each other, then uses the bracket adjusters and LED signal displays to improve the beam signal at both ends. The final AutoGain is run on the receiver from the panel controls. After that process is complete, the appropriate S4-34741-50 obscuration test is carried out for the selected receiver state. A fire response is shown at the receiver and the panel.
