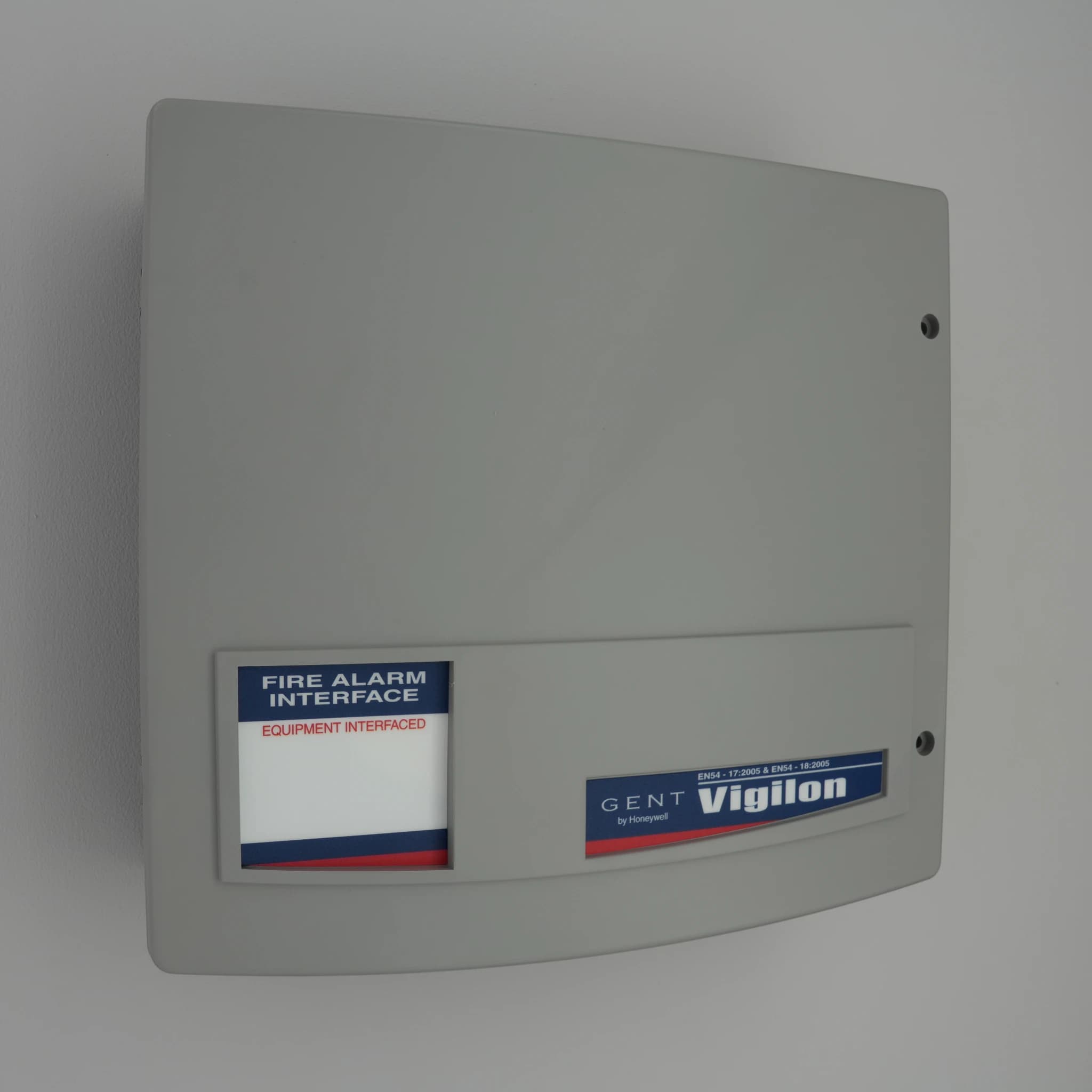

Gent Interface Enclosure Large (Plastic)
| Part no. | S4-34490 |
|---|---|
| Brand | Gent |
| Range | S4 Interfaces & Accessories |
| Sub-range | Interface Enclosures |
Image for illustration; item supplied may differ
At a glance
- Houses one S4 low voltage interface moduleFits an S4-34410, S4-34420 or S4-34450, secured inside by two M4 screws. The interface module is ordered separately.
- Supplied enclosure accessoriesIncludes one Allen key, two M4 screws, two M4 posi pan screws and seven hole plugs.
- Incoming cable terminationProvides termination points for incoming cables on the enclosure.
- Hinged door and keyhole fixingThe light grey hinged door opens with the supplied Allen key. Three fixing points, including one keyhole, secure the box.
- IP31, 245 x 227 x 77mmThe dark grey plastic box measures 245mm wide, 227mm high and 77mm deep, with IP31 ingress protection.
- Our choice for a four channel S4-34450Accommodates the loop connections and four channel cable runs at one position.
Description
The Gent S4-34490 is a large plastic enclosure for one S4-34410, S4-34420 or S4-34450 low voltage interface module. The module fits inside on two M4 screws and is ordered separately. The dark grey box has a light grey hinged door, opened with the supplied Allen key, and provides cable termination points for incoming cables. It measures 245mm wide, 227mm high and 77mm deep, with IP31 ingress protection. Three fixing points, including one keyhole, secure the box. We recommend it for a fully wired four channel S4-34450, bringing the loop connections and four channel cable runs into one housing.
The S4-34490 houses one S4-34410, S4-34420 or S4-34450 low voltage interface module. Each of these modules is supplied without an enclosure and is ordered separately. Two M4 screws secure the module inside this box, which also provides termination points for incoming cables.
Read the full technical description
The S4-34490 houses one S4-34410, S4-34420 or S4-34450 low voltage interface module. Each of these modules is supplied without an enclosure and is ordered separately. Two M4 screws secure the module inside this box, which also provides termination points for incoming cables.
The plastic backbox is dark grey and the hinged door is light grey. The supplied Allen key opens the door. Three fixing points secure the enclosure, with a keyhole at one position. The enclosure accessories comprise one Allen key, two M4 screws, two M4 posi pan screws and seven hole plugs.
The enclosure measures 245mm wide by 227mm high by 77mm deep and has IP31 ingress protection. With an S4-34410 fitted, the combined weight is 1047g; with an S4-34420 or S4-34450 fitted, it is 1055g.
We recommend this box for the four channel S4-34450, whose loop connections and four channel cable runs meet at one position. For a single input or one output and one input module, our usual choice is the small metal S4-34492 with 20mm and 25mm knockouts. The M200E-SMB surface box is a cost-effective option for a single module. The S4-34496 holds six interfaces together.
Specifications
| Type | Interface enclosure, large plastic box |
|---|---|
| Fits / houses | Gent S4-34410, S4-34420 and S4-34450 low voltage interface modules |
| Capacity | One interface module |
| Material | Plastic |
| Colour | Dark grey box with a light grey door |
| Ingress protection | IP31 |
| Cable termination | Termination points on the enclosure for incoming cables |
| Dimensions (W x H x D) | 245 x 227 x 77mm |
|---|---|
| Weight, module fitted | 1047g with an S4-34410; 1055g with an S4-34420 or S4-34450 |
| Access | Hinged door, opened with the supplied Allen key |
| Box fixing | 3 box fixing points, one of them a keyhole |
| Module fixing | Two M4 screws inside the box |
| Supplied with | 1 Allen key, 2 M4 screws, 2 M4 posi pan screws, 7 hole plugs |
Specifications per manufacturer documentation, subject to change. E&OE.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Data & Installation - S4 LV Interface Modules (4188-873 issue 9) - enclosure, mounting and DIN details | Installation | 4.2 MB | Download PDF |
Optional accessories
- S4-34415Single Channel (output only) Interface c/w Relay and Enclosurecompatible / works with: Single Channel (output only) Interface c/w Relay and Enclosu£108.84ex VAT£130.61 inc VATIn stock
- S4-34410Single Channel Interface, LV Input only (no enclosure)Used by / houses: Single Channel Interface, LV Input only (no enclos£58.01ex VAT£69.61 inc VATIn stock
- S4-34420LV Interface 1 Output & 1 Input (no enclosure)Used by / houses: LV Interface 1 Output & 1 Input (no enclosure)£51.43ex VAT£61.72 inc VATIn stock
- S4-344504 Channel Interface (input/output) (no enclosure)Used by / houses: 4 Channel Interface (input/output) (no enclosure)£163.85ex VAT£196.62 inc VATIn stock
FAQs
Which Gent interface modules fit the S4-34490?
The enclosure takes one S4-34410 single input module, one S4-34420 with one output and one input, or one four channel S4-34450. The module is ordered separately and fixes inside the box on two M4 screws. We recommend this enclosure for a fully wired S4-34450, bringing the loop connections and four channel cable runs together. The housing provides termination points for incoming cables and has a hinged door that opens with the supplied Allen key.
How many interface modules does the S4-34490 house?
The S4-34490 is a housing for one interface module, secured inside on two M4 screws. It suits the S4-34410, S4-34420 and S4-34450. For six interfaces at one position, the S4-34496 provides a single enclosure to hold them together. Other options for one module include the small metal S4-34492, our usual recommendation, and the cost-effective M200E-SMB surface box. The S4-34490 is our choice for a fully wired S4-34450 with its loop connections and four channel cable runs.
Why do you recommend the S4-34490 for a four channel S4-34450?
A fully wired S4-34450 brings the loop in and out and a separate cable run for each of its four channels to the enclosure. The S4-34490 accommodates these connections in a large plastic housing with termination points for incoming cables. It measures 245mm wide, 227mm high and 77mm deep. For a single input or one output and one input module, the small metal S4-34492 is our usual choice, with the M200E-SMB as a cost-effective surface box.
What is supplied with the S4-34490?
The enclosure comes with one Allen key, two M4 screws, two M4 posi pan screws and seven hole plugs. The Allen key opens its light grey hinged door, and two M4 screws secure the interface module inside the dark grey backbox. The module is ordered separately; the enclosure accepts one S4-34410, S4-34420 or S4-34450. The box has three fixing points, including one keyhole, and measures 245mm wide by 227mm high by 77mm deep.
What size is the S4-34490 and what does it weigh with a module fitted?
The enclosure measures 245mm wide, 227mm high and 77mm deep. With an S4-34410 fitted, the module and enclosure together weigh 1047g. With an S4-34420 or S4-34450 fitted, the combined weight is 1055g. The plastic backbox is dark grey with a light grey hinged door and has IP31 ingress protection. Three fixing points, including one keyhole, secure the enclosure, while two M4 screws hold the module inside. The supplied Allen key opens the door.
