Gent Vigilon VIG-BNG-DINKIT BACnet Gateway DIN Rail Kit
- Kit contents
- 24v DC supply cable
- Mounting
- The assembly is fitted on the din rail of an S4-34440-12 mains powered interface
- Ethernet cable included
- Ethernet cable not included
Overview
What it is and how it fits the system.

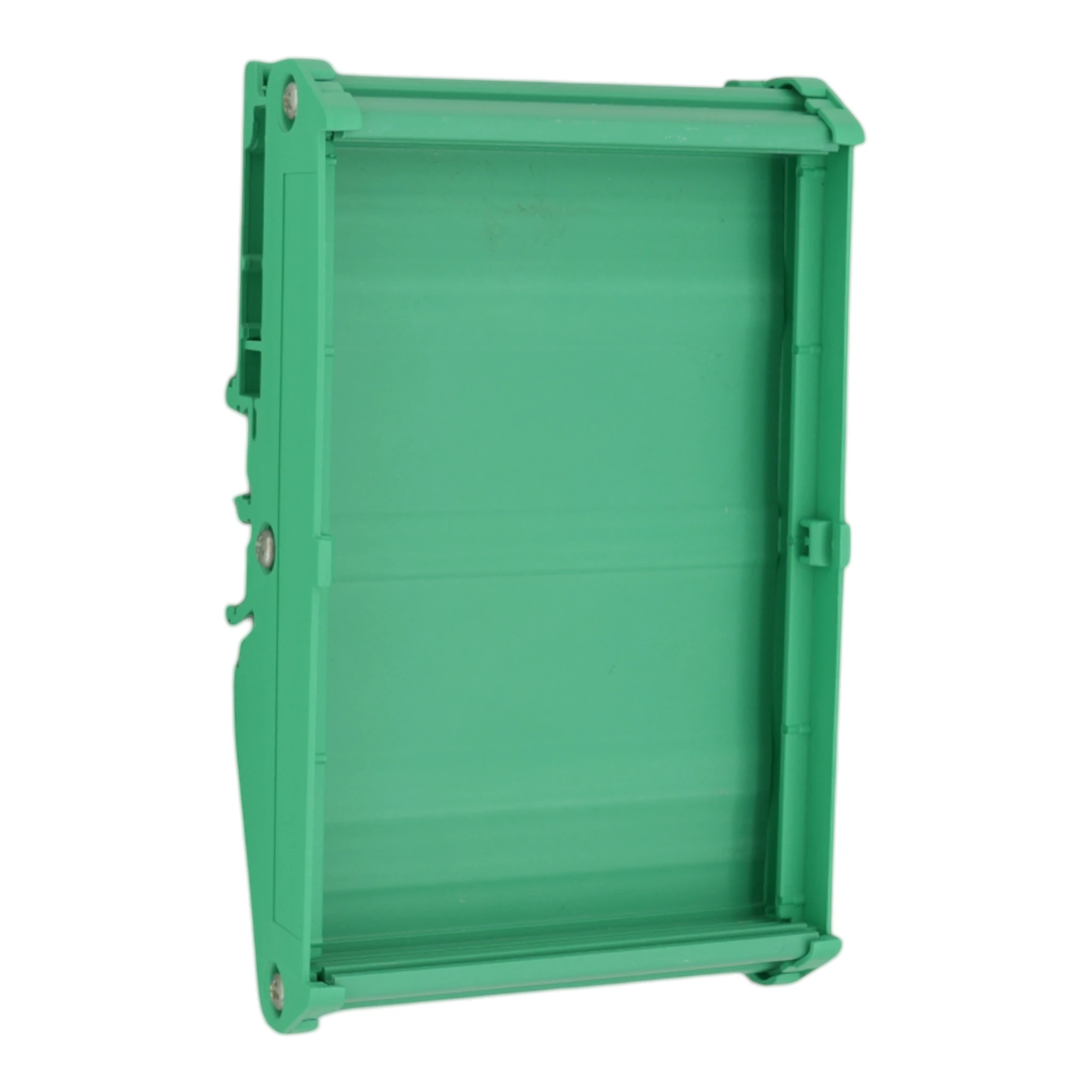

The VIG-BNG-DINKIT is a BACnet Gateway DIN rail mounting kit for mains-powered interfaces (S4-34440-12), supplying everything needed to fit inside and connect to a VIG-NET-NODE. The kit includes the gateway PCB, PCB carrier, mounting pillars, a 500mA fuse, an RS232 cable (NUP to open wire) and a 24V DC supply cable. The assembly fits on the DIN rail of the mains-powered interface; the Ethernet cable is not included.
Technical overview
VIG-BNG-DINKIT is a BACnet Gateway DIN rail mounting kit from Gent by Honeywell for mains-powered interfaces (S4-344402/12) in the Vigilon Plus range. It includes the gateway PCB, PCB carrier, mounting pillars, 500mA fuse, RS232 cable (NUP to open wire) and 24V DC supply cable for assembly on the interface DIN rail. Ethernet cable is not supplied. The kit enables connection to a VIG-NET-NODE and is compatible with VIG-BNG and VIG-BNG-RW BACnet gateway assemblies. RS232 linkage to a VIG-IOC-DOM is also supported. For physical connections, consult the installation manual.
Specifications
Full technical data for this part.
| Description | BACnet Gateway Din Rail Mounting Kit for Mains powered interfaces S4-344402/12 |
|---|---|
| Kit contents | 24v DC supply cable |
| Mounting | The assembly is fitted on the din rail of an S4-34440-12 mains powered interface |
| Ethernet cable included | Ethernet cable not included |
Specifications sourced from manufacturer documentation.
Specifications per manufacturer documentation, subject to change — E&OE. Spotted an inaccuracy? Let us know
Enhancements (optional)
Optional additions — this product works without them.
Mains Powered Interface - max o/p power 2.5A. Batteries not included - requires 2 x 4015-514-YFR (Power Sonic Flame Retardant 12V 12Ah) to meet compliance regulations.
For mains powered interfaces S4-344402/12 (S4-34440-12)
Input/Output Card for VIGPLUS-24 and VIGPLUS-72 Vigilon Panels (EN54)
RS232 connection to a VIG-IOC-DOM
BACnet Gateway Assembly for Vigilon & Compact with Controls & Command Builds
Used with the VIG-BNG / VIG-BNG-RW BACnet Gateway Assembly
BACnet Gateway Assembly for Vigilon & Compact
Used with the VIG-BNG / VIG-BNG-RW BACnet Gateway Assembly
