Gent S3 red Body Sounder Standard Power red VAD
| Part no. | S3-S-VAD-LPR-R |
|---|---|
| Brand | Gent |
| Range | S3 Sounders & VADs |
| Sub-range | Wall Sounders with VAD |

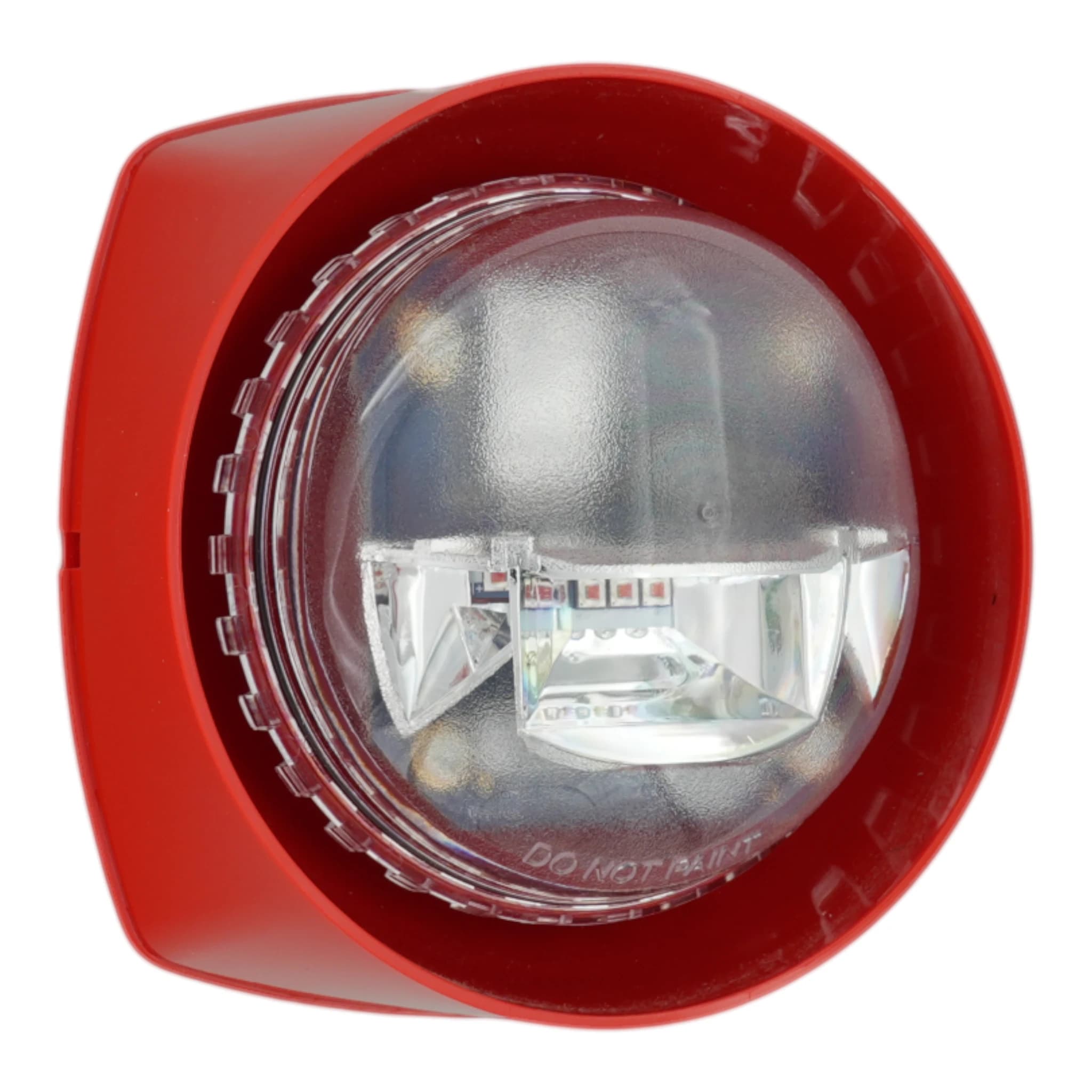

Image for illustration; item supplied may differ
At a glance
- Standard Power red visual alarm with tonesThis red bodied model combines three alarm tones with a Standard Power red VAD. It has no spoken messages.
- One EN 54-23 coverage settingW-3-8.5, 216 cubic metres. Coverage requires compliant operation, compatible panel software, installation within the category's maximum mounting height and minimum effective illuminance of 0.4 lux. For EN Vigilon 4-loop and 4-6-loop panels, EN 54-23 coverage requires MCC V4.52 or later and LPC V4.48 or later. For EN Vigilon Compact, it requires MCB V4.52 or later and LPC V4.48 or later. On Nano, MCB V3.12 or later and LP V1.08 or later support the Standard Power VAD coverage.
- Maximum VAD current and powerMaximum loop current and power for the Standard Power VAD are 8mA and 280mW. Maximum sounder current and power for Turbo are 5mA and 175mW; the combined maximum is 13mA and 455mW.
- Loop powered with an integral isolatorThe S3-S-VAD-LPR-R has an integral short circuit isolator meeting EN 54-17. The indoor S-Cubed range uses a 35V to 48V loop supply and loop in/out connections.
- Indoor S-Cubed housing and base optionsThe indoor S-Cubed range is rated IP 21, with a 112mm square face and wall projection of 90mm on the standard base or 75mm on the optional shallow base. The S3-BASE-SR shallow base is red and comes in packs of five.
- S-Cubed tone and volume adjustmentFor S-Cubed sounders, the S3-CONTROL infrared remote selects tone and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel.
Description
The Gent S3-S-VAD-LPR-R is a wall tone sounder with an integral Standard Power red visual alarm device and red body, for Gent Vigilon Plus, Compact Plus and Nano systems. It provides three alarm tones without spoken messages. The Standard Power VAD has one EN 54-23 coverage setting. Certified coverage requires compliant operation and compatible panel software. The indoor S-Cubed range is rated IP 21 for internal walls. The device is loop powered, with an integral short circuit isolator. The indoor range has a 112mm square face and projects 90mm on the standard base or 75mm on the optional shallow base. Supplied with a matching red standard base and one screw fitted in the base.
The S3-S-VAD-LPR-R is the red bodied tone sounder with a Standard Power red visual alarm device in Gent's S-Cubed Mark 3 range. It is loop powered and compatible with Gent Vigilon Plus, Compact Plus and Nano systems. It provides tone alarms without spoken messages.
Read the full technical description
The S3-S-VAD-LPR-R is the red bodied tone sounder with a Standard Power red visual alarm device in Gent's S-Cubed Mark 3 range. It is loop powered and compatible with Gent Vigilon Plus, Compact Plus and Nano systems. It provides tone alarms without spoken messages.
S-Cubed sounders provide three LPCB approved signals: an intermittent 970Hz tone at 1Hz, alternating 730Hz and 970Hz tones at 2Hz, and a continuous 970Hz tone. Each tone frequency has a tolerance of +/-10%. The range sounder rating is 103dB(A) +/-3dB, measured at 90 degrees and 1m.
The Standard Power red VAD coverage is W-3-8.5, 216 cubic metres. Coverage requires compliant operation, compatible panel software, installation within the category's maximum mounting height and minimum effective illuminance of 0.4 lux. For EN Vigilon 4-loop and 4-6-loop panels, EN 54-23 coverage requires MCC V4.52 or later and LPC V4.48 or later. For EN Vigilon Compact, it requires MCB V4.52 or later and LPC V4.48 or later. On Nano, MCB V3.12 or later and LP V1.08 or later support the Standard Power VAD coverage. The S-Cubed VAD flash interval is two seconds. Maximum loop current and power for the Standard Power VAD are 8mA and 280mW. Maximum sounder current and power for Turbo are 5mA and 175mW; the combined maximum is 13mA and 455mW.
The indoor S-Cubed range uses a 35V to 48V loop supply and loop in/out terminals 01, L1, 02 and L2; the loop screen connects to the metal box earth. The S3-S-VAD-LPR-R has an integral short circuit isolator meeting EN 54-17. The indoor range is rated IP 21 for internal wall positions. Its body and lens are polycarbonate and the base is ABS. The indoor S-Cubed range has a 112mm square face and projects 90mm on the standard base or 75mm on an optional shallow base. The S3-BASE-SR shallow base matches this red body and comes in packs of five. Allow at least 10cm below the ceiling when fitting a shallow base so that the locking screw remains accessible. Keep the TOP mark facing upwards and the cable tails within 10cm. The base must remain surface mounted and the enclosure unpainted.
Changes to VAD settings on site use the Vigilon Commissioning Tool V1.32 or later with compatible loop software. For EN Vigilon 4-loop and 4-6-loop panels, EN 54-23 coverage requires MCC V4.52 or later and LPC V4.48 or later. For EN Vigilon Compact, it requires MCB V4.52 or later and LPC V4.48 or later. On Nano, MCB V3.12 or later and LP V1.08 or later support the Standard Power VAD coverage. The Nano Commissioning Tool is V3.0 or later. The device remains compatible with earlier panel software; certified coverage depends on the panel and loop versions above. For S-Cubed sounders, the S3-CONTROL infrared remote selects tone and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel. S-Cubed sounders and visual alarm devices synchronise across all loops of one panel; synchronisation does not extend across a network of panels.
Specifications
| Order code description | Sounder/Standard Power Red VAD/Red Body |
|---|---|
| Device type | Wall mounted sounder with integral visual alarm device, Gent S-Cubed Mark 3 range, for indoor positions |
| Sound output | S-Cubed sounder range rating: 103dB(A) +/-3dB at 90 degrees and 1m. |
| Tones | S-Cubed sounder signals: 1, intermittent 970Hz at 1Hz; 2, alternating 730Hz and 970Hz at 2Hz; 3, continuous 970Hz. Tone frequencies have a +/-10% tolerance. All three signals are LPCB approved. |
| Spoken messages | No spoken messages. |
| EN 54-3 tone settings certified | Certified to EN 54-3 at three sounder tone settings: intermittent 970Hz at 1Hz, alternating 730/970Hz at 2Hz, and continuous 970Hz |
| VAD class | Standard Power red VAD. One EN 54-23 setting only; the High Power models carry three, selected at commissioning |
| VAD category and coverage | EN 54-23 category W-3-8.5; coverage volume 216 cubic metres |
| VAD coverage conditions | Coverage requires compliant operation, compatible panel software, installation within the category's maximum mounting height and minimum effective illuminance of 0.4 lux. For EN Vigilon 4-loop and 4-6-loop panels, EN 54-23 coverage requires MCC V4.52 or later and LPC V4.48 or later. For EN Vigilon Compact, it requires MCB V4.52 or later and LPC V4.48 or later. On Nano, MCB V3.12 or later and LP V1.08 or later support the Standard Power VAD coverage. |
| Coverage notation | For wall category W-x-y, x is the maximum mounting height and y is the maximum width and length, in metres. The minimum category value of x is 2.4m. Coverage uses a minimum effective illuminance of 0.4 lux. |
| VAD flash rate | S-Cubed VAD range: one flash every two seconds (0.5Hz). |
| Lens and body colour | Clear lens, red flash; red body, RAL 3020 |
| Material and flammability | S-Cubed indoor range: polycarbonate body and lens, ABS base; V2 flammability rating. |
| Ingress protection | S-Cubed indoor range: IP 21. |
|---|---|
| Loop operating voltage | S-Cubed indoor range: 35V to 48V. |
| Power source | Loop powered |
| Maximum loop current and power | Maximum values: VAD only 8mA (280mW); sounder Turbo = 5mA (175mW); VAD and sounder total 13mA (455mW) |
| Short circuit isolator, EN 54-17 data | Integral isolator. S-Cubed indoor range limits: Vmax 48V; Vnom 40V; Vmin 24V; VSOmax 16V; VSOmin 8V; ICmax 0.8A; ISmax 1.25A; ILmax 50uA; ZCmax 0.13 ohm. |
| Terminals | S-Cubed indoor range: loop in/out terminals 01, L1, 02 and L2; connect the loop screen to the metal box earth. |
| Temperature and humidity | S-Cubed indoor range: operating temperature -10C to +50C; storage -20C to +70C; relative humidity up to 95% without condensation between +5C and +45C. |
| Dimensions | S-Cubed indoor range: 112mm square face; projection 90mm with the standard base or 75mm with the optional shallow base. |
| Weight | Indoor S-Cubed VAD range, including base: 293g with the deep base or 271g with the optional shallow base. |
| Mounting and base | Supplied with a matching red standard base and one screw fitted in the base. For indoor S-Cubed installation, secure the base to a flat wall or metal box, with TOP facing upwards and the VAD level. Keep shallow bases at least 10cm below the ceiling for screw access and limit cable tails to 10cm. Keep the enclosure unpainted and the base surface mounted. |
| Volume and tone selection | For S-Cubed sounders, the S3-CONTROL infrared remote selects tone and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel. |
| Panel compatibility | For EN Vigilon 4-loop and 4-6-loop panels, EN 54-23 coverage requires MCC V4.52 or later and LPC V4.48 or later. For EN Vigilon Compact, it requires MCB V4.52 or later and LPC V4.48 or later. On Nano, MCB V3.12 or later and LP V1.08 or later support the Standard Power VAD coverage. |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| LPCB approved | Approved by the Loss Prevention Certification Board for fire detection and alarm system products. |
| LPCB certificate 042bs | |
| EN 54-3:2001 + A1:2002 + A2:2006 | |
| EN 54-17:2005 + AC:2007 | |
| EN 54-23:2010 | |
| Declaration of Performance 110-CPR-2014 Issue 3 |
Approval body: Loss Prevention Certification Board (BRE Global Limited), System 1.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Installation manual (S3-BASE-SR, S3-BASE-SW, S3-S-VAD-HPR-R, S3-S-VAD-HPR-W, S3-S-VAD-LPR-R, S3-S-W, S3-V-R, S3-V-VAD-HPR-R, S3-V-VAD-HPW-R, S3-V-W, S3-VAD-HPR-R) | Installation | 740 KB | Download PDF |
Optional accessories
- S3-CONTROLHandiLink IR Remote Control for the S-Cubed Range of SoundersRemote Control (S3-CONTROL) for volume control / IR adjustment£107.64ex VAT£129.17 inc VATIn stock
FAQs
What is the difference between the S3-S-VAD-LPR-R and the S3-S-VAD-HPR-R?
This Standard Power model has one EN 54-23 category: W-3-8.5, covering 216 cubic metres. The High Power S3-S-VAD-HPR-R offers three settings: W-6.7-14 and 1313 cubic metres at High, W-6.5-12.5 and 1015 at Medium, and W-5-9.5 and 451 at Low. Both combine a tone sounder with a red beacon and red body. Coverage requires compliant operation, compatible software, installation within the category's maximum mounting height and minimum effective illuminance of 0.4 lux. The Standard Power model has no higher setting.
How does the S3-S-VAD-LPR-R flash, and how are tone and volume set?
The beacon flashes every two seconds, or 0.5Hz. Its three alarm tones are intermittent 970Hz at 1Hz, alternating 730Hz and 970Hz at 2Hz, and continuous 970Hz. Across the S-Cubed sounder range, tone and volume can be adjusted with the commissioning tool or S3-CONTROL infrared remote. Remote adjustment requires the panel to be in test mode and has a maximum range of 3m. Save the adjusted volume at the panel. This model combines the tone sounder, beacon and integral short circuit isolator.
Does the S3-S-VAD-LPR-R play spoken messages?
This model provides alarm tones without spoken messages. Its three signals are intermittent 970Hz at 1Hz, alternating 730Hz and 970Hz at 2Hz, and continuous 970Hz. The S in its part code identifies the tone sounder; voice sounders use V in that position. The S3-V-VAD-HPR-R combines spoken messages with a High Power red beacon and red body. This S3-S-VAD-LPR-R instead combines its three tones with a Standard Power red beacon and has one EN 54-23 coverage setting.
How much loop current does the S3-S-VAD-LPR-R draw?
The maximum currents are 8mA for the beacon alone, 5mA for the sounder for Turbo, and 13mA for the beacon and sounder together. The corresponding maximum powers are 280mW, 175mW and 455mW. These values apply to the Standard Power sounder and VAD combination. S-Cubed Mark 3 devices use a loop supply of 35V to 48V. Use the Gent Battery Standby and Loop Load Calculator for system design. The S3-S-VAD-LPR-R also has an integral short circuit isolator meeting EN 54-17.
Can the S3-S-VAD-LPR-R be fitted on a lower profile base?
Supplied with a matching red standard base and one screw fitted in the base. The optional S3-BASE-SR shallow base is red and comes in packs of five. It replaces the deep base to reduce the projection from the wall. Indoor S-Cubed devices have a 112mm square face and project 90mm with the standard base or 75mm with the shallow base. Keep a shallow base at least 10cm below the ceiling so the locking screw remains accessible. The S-Cubed installation arrangement also limits the tail wires to a maximum length of 10cm.
