Gent Loop Card for VIGPLUS-24 and VIGPLUS-72 Vigilon Panels (EN54)
| Part no. | VIG-LPC-EN |
|---|---|
| Brand | Gent |
| Range | Vigilon Plus |
| Sub-range | Vigilon Plus Cards |

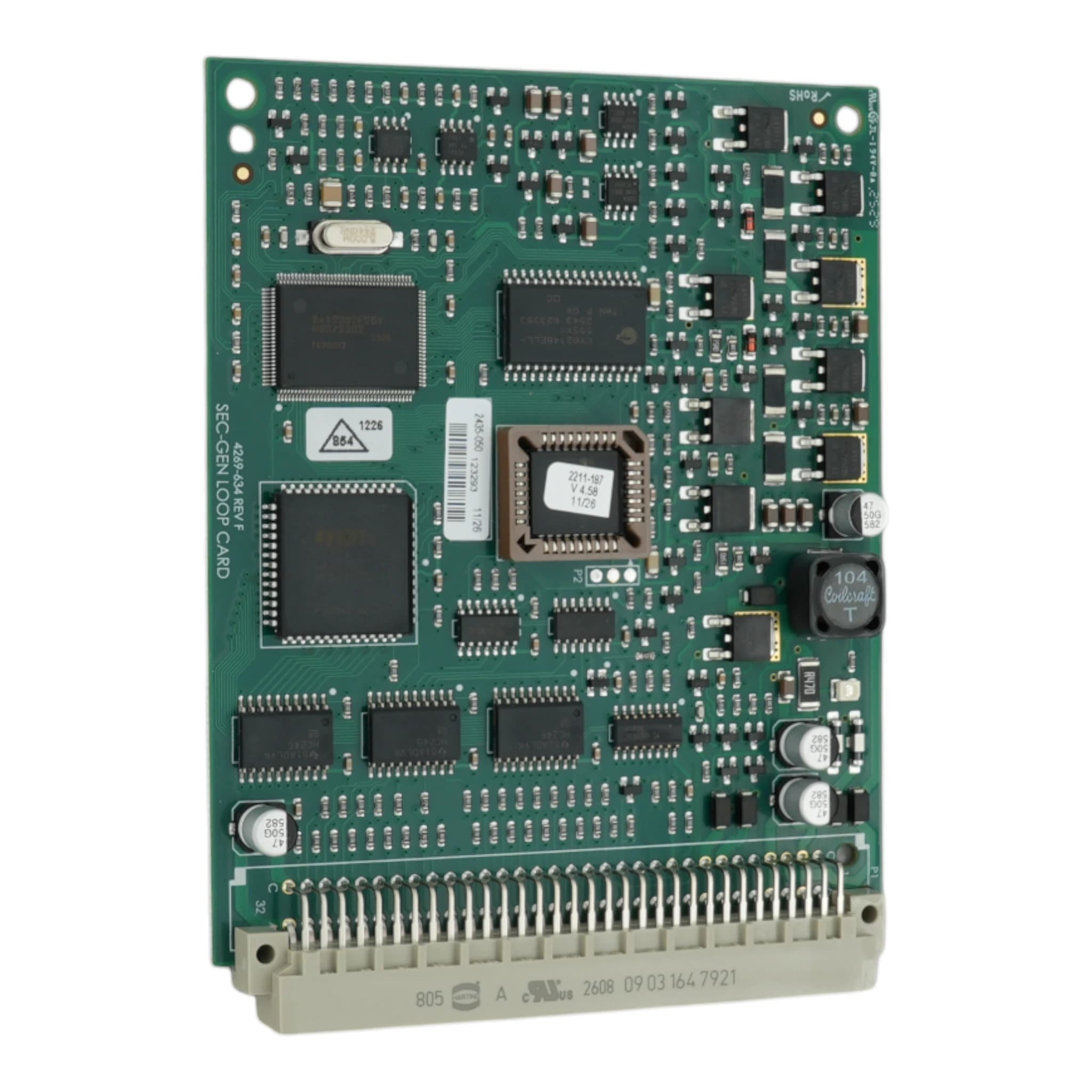

Image for illustration; item supplied may differ
At a glance
- One card for each additional loopAdd one VIG-LPC-EN for each extra loop required on the supported Vigilon panel.
- VIGPLUS-24 loop positionsThe panel backplane provides P3 to P6 for loops 1 to 4.
- VIGPLUS-72 loop positionsThe six-loop panel can use P7 and P8 for loops 5 and 6, following the panel's card allocation.
- Up to 200 devices per loopThe achievable count depends on cable length, electrical load and the placement of alarm devices.
- Supported mixed 34000 circuitsWith 1.5mm² cable, supported 34000 or mixed 34000, S4 and S3 loops have a 1km limit; 3400 and legacy 34450 devices are excluded.
- 130mm by 100mm by 15mmThe VIG-LPC-EN card measures 130mm × 100mm × 15mm.
Description
The Gent VIG-LPC-EN is a loop card for VIGPLUS-24 and VIGPLUS-72 fire panels. Each additional loop needs a card in its allocated backplane slot. A loop supports up to 200 devices, with the actual count set by cable length, alarm load and where the devices are placed. Supported 34000 circuits using 1.5mm² cable have a 1 km limit, including the main loop and all connected spurs. The card must not replace an older card on a loop with 3400 devices. The VIG-LPC-EN and COMPACT-LPC-EN range excludes the legacy 34450 four-channel interface. The VIG-LPC-EN card measures 130mm by 100mm by 15mm.
VIG-LPC-EN is the post-March 2014 loop card for Vigilon four- and six-loop panels, including VIGPLUS-24 and VIGPLUS-72. The panel is supplied with one loop card and each additional loop requires another. On the Plus backplane, P3 to P6 serve loops 1 to 4. P7 and P8 can serve loops 5 and 6 on VIGPLUS-72, subject to the panel's card allocation.
Read the full technical description
VIG-LPC-EN is the post-March 2014 loop card for Vigilon four- and six-loop panels, including VIGPLUS-24 and VIGPLUS-72. The panel is supplied with one loop card and each additional loop requires another. On the Plus backplane, P3 to P6 serve loops 1 to 4. P7 and P8 can serve loops 5 and 6 on VIGPLUS-72, subject to the panel's card allocation.
A VIG-LPC-EN loop supports up to 200 devices. The usable number depends on cable length, electrical loading and the position of alarm devices. Loop length includes all connected spur wiring. Concentrating alarm devices in one section of the circuit requires a different design calculation from distributing them along the cable.
With 1.5mm² cable, a circuit containing supported 34000 devices, including a mixture with S4 and S3 devices, has a 1km limit. VIG-LPC-EN must not be fitted as a replacement where 3400 devices are installed. The VIG-LPC-EN and COMPACT-LPC-EN range does not support the legacy 34450 four-channel interface. That code is distinct from S4-34450.
The Battery Standby and Loop load calculator determines working loop length, loading and battery requirements for the proposed installation. The calculation accounts for the device mix, cable route and distribution of alarm loads.
VIG-LPC-EN measures 130mm by 100mm by 15mm. The post-March 2014 build carries the SEC-GEN LOOP CARD marking and a firmware label. The panel identifies it as Loop card (2). The Vigilon Loop Diagnostic Tool diagnoses connected circuits in the post-March 2014 EN loop-card range.
Specifications
| Manufacturer | Gent |
|---|---|
| Device role | Loop card for Vigilon four- and six-loop panels |
| Plus panel application | VIGPLUS-24 and VIGPLUS-72 |
| Additional loop provision | One card required for each additional loop |
| Loops 1 to 4, Plus panels | P3, P4, P5 and P6 respectively |
| Loops 5 and 6, VIGPLUS-72 | P7 and P8 respectively, following panel card allocation |
| Maximum devices per loop | Up to 200, subject to load, cable length and device distribution |
| Supported 34000 or mixed loop limit | Up to 1km with 1.5mm² cable |
| Mixed-device qualification | Supported 34000 devices, or a mix of supported 34000, S4 and S3 devices |
| Cable length calculation | Main loop plus all connected spurs |
| 3400 replacement restriction | Do not fit as a replacement where 3400 devices are installed |
|---|---|
| EN loop-card range legacy restriction | VIG-LPC-EN and COMPACT-LPC-EN do not support legacy 34450 |
| Alarm-device placement | Distributed and concentrated loads require different design calculations |
| Design calculation tool | Gent Battery Standby and Loop load calculator |
| Dimensions | 130mm × 100mm × 15mm |
| Hardware build | Post-March 2014 EN loop card |
| Identification marking | SEC-GEN LOOP CARD |
| Firmware label | 2211-187, V4.xx |
| Panel status identification | Loop card (2) identifies VIG-LPC-EN build |
| EN loop-card range diagnostics | Vigilon Loop Diagnostic Tool for post-March 2014 EN loop cards |
Specifications per manufacturer documentation, subject to change. E&OE.
