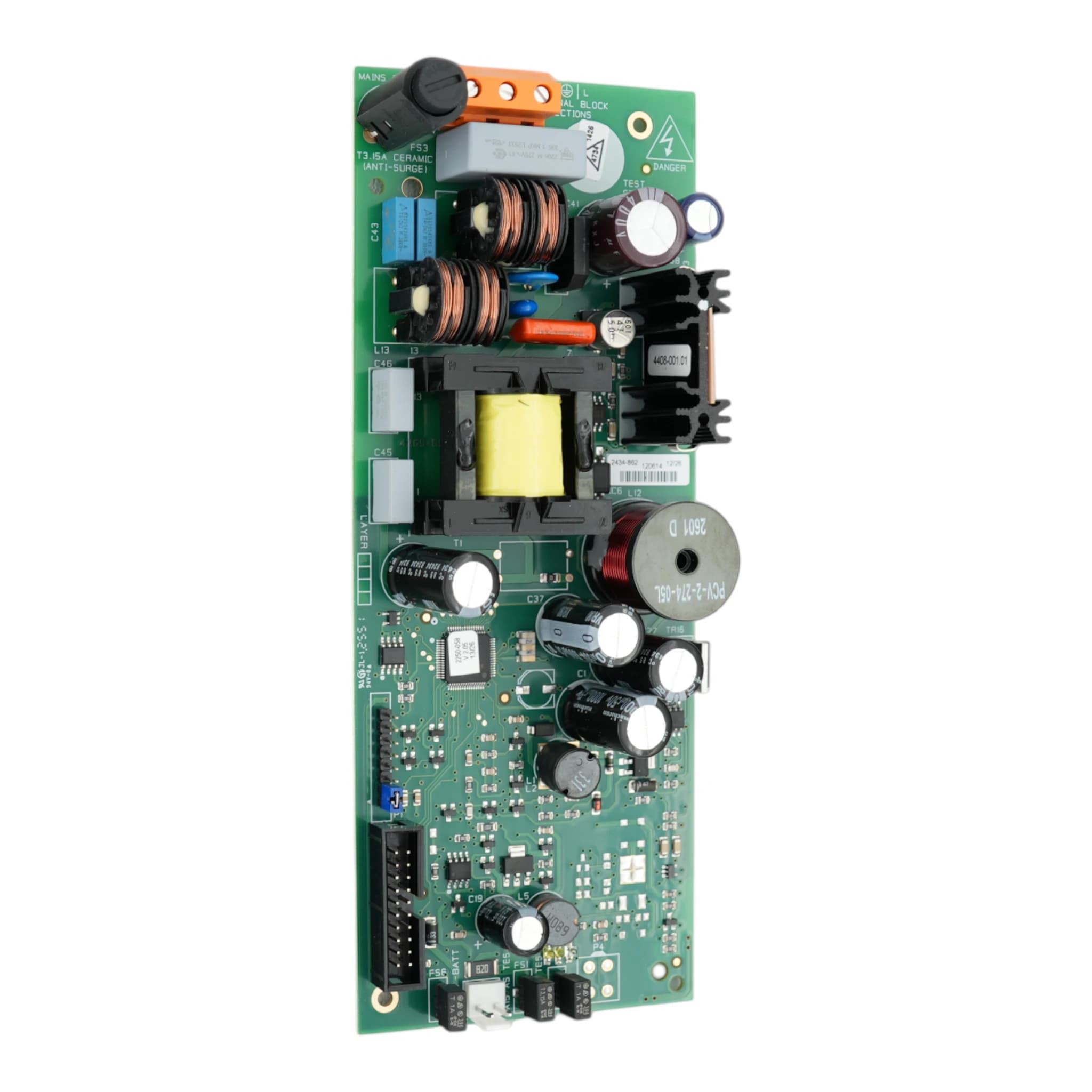

Gent Replacement PSU for Compact Control Panel
| Part no. | VCS-PSU-N |
|---|---|
| Brand | Gent |
| Range | Compact Plus |
| Sub-range | Compact Plus Spares |
Image for illustration; item supplied may differ
Volume pricing
Bulk discount, applied automatically at checkout.
| Quantity | Unit price ex VAT |
|---|---|
| 1+ | £344.43 |
| 5+ | £332.37 |
| 25+ | £320.32 |
Don't forget
- COMPACT-PLUSVigilon Compact Plus 1-2 Loop Control Panel c/w 1 Loop Card & Supplied in Black.For use with the COMPACT-PLUS (Vigilon Compact Plus control panel, c/w 1 Loop card, suppli£1,186.43ex VAT£1,423.72 inc VAT
At a glance
- Replacement Compact power supplyReplacement power supply for Compact control panels.
- COMPACT-PLUS fitFits the Vigilon COMPACT-PLUS panel.
- Compact Plus node fitFits the Vigilon Compact Plus network node.
- COMPACT-24 and COMPACT-24-N fitFits the non-networkable COMPACT-24 and networkable COMPACT-24-N.
- NANO-24 fitFits NANO-24; the supplied cover is not used on Nano.
- PCB and coverContains one replacement PSU PCB assembly and one replacement cover.
Description
Gent VCS-PSU-N is a replacement power supply for COMPACT-24, COMPACT-24-N and COMPACT-PLUS panels, the Compact Plus network node and NANO-24. The pack contains one PSU PCB assembly and one cover; the cover is not used on Nano. In a Compact panel, the existing ribbon cable reconnects the replacement PSU board to the Master Control Board.
VCS-PSU-N is a Gent replacement power supply for COMPACT-24, COMPACT-24-N and COMPACT-PLUS control panels, the Compact Plus network node and NANO-24. COMPACT-24 is non-networkable, while COMPACT-24-N is networkable.
Read the full technical description
The pack contains one replacement PSU PCB assembly and one replacement cover. The cover is not used on Nano panels.
For a Compact panel replacement, reconnect the existing ribbon cable between the replacement PSU PCB assembly and the Master Control Board.
Specifications
| Part number | VCS-PSU-N |
|---|---|
| Manufacturer | Gent |
| Part type | Replacement power supply unit |
| Replacement PCB quantity | 1 PSU PCB assembly |
| Replacement cover quantity | 1 |
| Compact panel fit | COMPACT-24 and COMPACT-24-N |
| Compact Plus panel fit | COMPACT-PLUS |
| Network node fit | Compact Plus network node |
| Nano panel fit | NANO-24 |
| Cover use on Nano | Replacement cover not used |
| Compact board connection | Existing ribbon cable reconnects PSU PCB assembly to MCB |
Specifications per manufacturer documentation, subject to change. E&OE.
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Installation manual (VCS-IDOOR-PLUS, VCS-PSU-N) | Installation | 7.3 MB | Download PDF |
| Installation manual (PRINTER-H-PAPER, PRINTER-HAND, VCS-IDOOR-PLUS, VCS-PSU-N) | Installation | 7.7 MB | Download PDF |
Guides
Optional accessories
- COMPACT-NCNetwork Card for Vigilon Compact (EN Networks Only)Used by / houses: Network Card for Vigilon Compact (EN Networks only£742.33ex VAT£890.80 inc VATIn stock
FAQs
Which panels use VCS-PSU-N?
VCS-PSU-N fits COMPACT-24, COMPACT-24-N and COMPACT-PLUS control panels, the Vigilon Compact Plus network node and NANO-24.
What is supplied with VCS-PSU-N?
The pack contains one replacement PSU PCB assembly and one replacement cover.
Is the cover used in NANO-24?
No. The replacement PSU fits NANO-24, but the supplied cover is not used on Nano panels.
How does the PSU connect to the Compact main board?
The existing ribbon cable reconnects the replacement PSU PCB assembly to the Master Control Board in a Compact panel.
