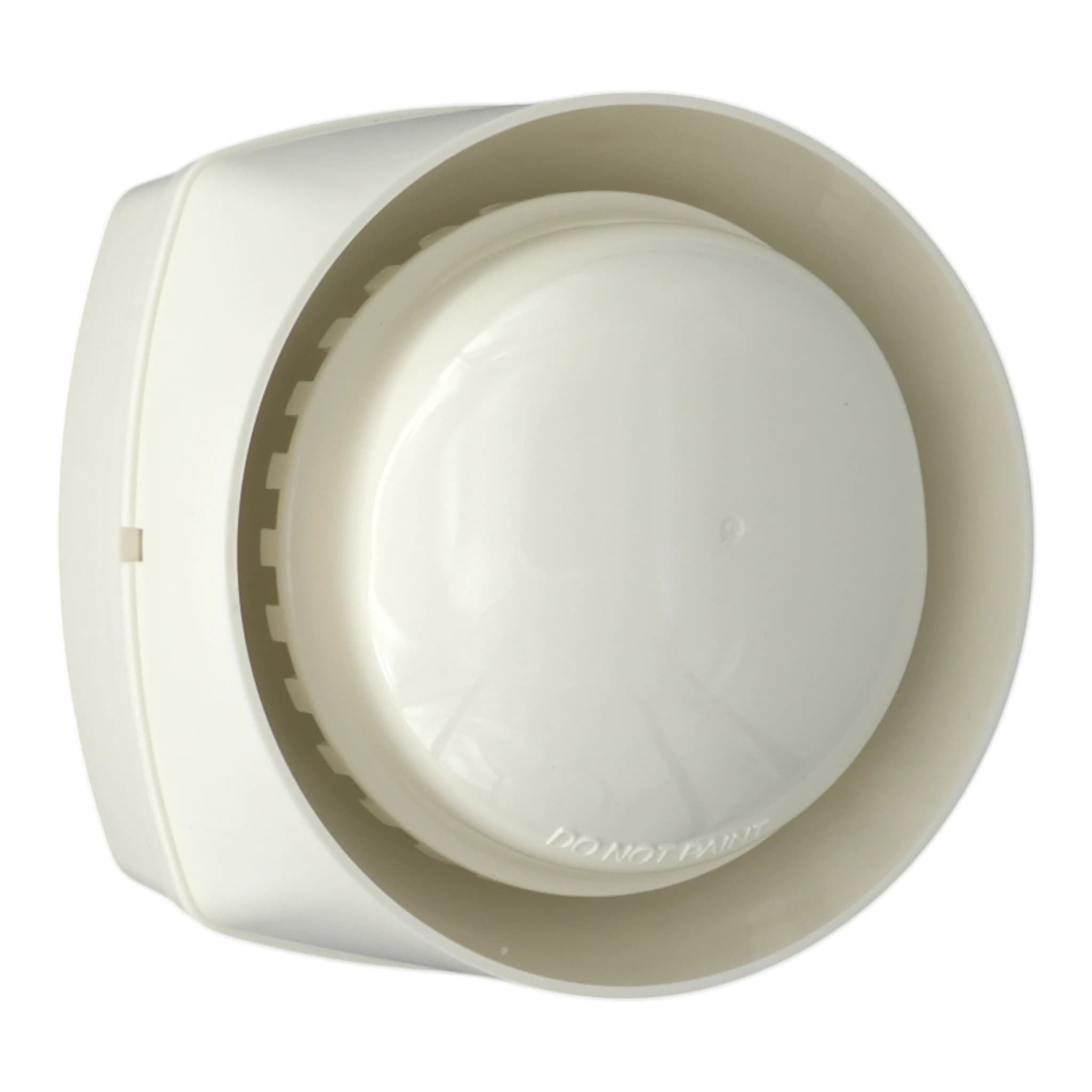

Gent S3 Voice Sounder White Body
| Part no. | S3-V-W |
|---|---|
| Brand | Gent |
| Range | S3 Sounders & VADs |
| Sub-range | Wall Voice Sounders |
Image for illustration; item supplied may differ
At a glance
- S-Cubed Mark 3 voice sounderA white bodied wall voice sounder for Gent Vigilon Plus, Compact Plus and Nano addressable systems. This model has no visual alarm device.
- Four spoken messages and a bell toneS-Cubed voice sounders store four spoken messages and a bell tone. The female announcements cover emergency evacuation, awaiting instructions and a test; the male announcement is for fire alarm evacuation. Message 3 with Signal 1 and Message 5 with Signal 2 are approved to EN 54-3 Annex C. The message and attention tone period defaults to 10 seconds and can be set up to 30 seconds; audio and bell-tone storage is up to 20 seconds.
- Loop powered with an integral isolatorThe S3-V-W has an integral short circuit isolator meeting EN 54-17. The indoor S-Cubed range uses a 35V to 48V loop supply and loop in/out connections.
- S-Cubed tone and volume adjustmentFor S-Cubed voice sounders, the S3-CONTROL infrared remote selects tone, speech message and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel.
- Indoor S-Cubed housing and base optionsThe indoor S-Cubed range is rated IP 21, with a 112mm square face and wall projection of 90mm on the standard base or 75mm on the optional shallow base. The S3-BASE-SW shallow base is white and comes in packs of five.
- EN 54-3 sounder and EN 54-17 isolatorThis voice sounder meets EN 54-3 and has a short circuit isolator meeting EN 54-17. It provides spoken messages as well as tones and a bell tone.
Description
The Gent S3-V-W is a white bodied wall voice sounder in the S-Cubed Mark 3 range, for Gent Vigilon Plus, Compact Plus and Nano addressable systems. It provides three alarm tones, four spoken messages and a bell tone. Two message and tone combinations are approved to EN 54-3 Annex C. It is loop powered and has an integral short circuit isolator. The indoor S-Cubed range is rated IP 21 for internal walls. Tone and volume can be set with the commissioning tool or S3-CONTROL infrared remote. The matching S3-BASE-SW shallow base is optional. The indoor range has a 112mm square face and projects 90mm on the standard base or 75mm on the optional shallow base. Supplied with a matching white standard base and one screw fitted in the base.
The S3-V-W is the white bodied voice sounder in Gent's S-Cubed Mark 3 range. It is loop powered and compatible with Gent Vigilon Plus, Compact Plus and Nano systems. It provides tones and spoken alarms without a visual alarm device.
Read the full technical description
The S3-V-W is the white bodied voice sounder in Gent's S-Cubed Mark 3 range. It is loop powered and compatible with Gent Vigilon Plus, Compact Plus and Nano systems. It provides tones and spoken alarms without a visual alarm device.
S-Cubed sounders provide three LPCB approved signals: an intermittent 970Hz tone at 1Hz, alternating 730Hz and 970Hz tones at 2Hz, and a continuous 970Hz tone. Each tone frequency has a tolerance of +/-10%. The range sounder rating is 103dB(A) +/-3dB, measured at 90 degrees and 1m. S-Cubed voice sounders store four spoken messages and a bell tone. The female announcements cover emergency evacuation, awaiting instructions and a test; the male announcement is for fire alarm evacuation. Message 3 with Signal 1 and Message 5 with Signal 2 are approved to EN 54-3 Annex C. The message and attention tone period defaults to 10 seconds and can be set up to 30 seconds; audio and bell-tone storage is up to 20 seconds.
The indoor S-Cubed range uses a 35V to 48V loop supply and loop in/out terminals 01, L1, 02 and L2; the loop screen connects to the metal box earth. The S3-V-W has an integral short circuit isolator meeting EN 54-17. The indoor range is rated IP 21 for internal wall positions. Its body is polycarbonate and the base is ABS. The indoor S-Cubed range has a 112mm square face and projects 90mm on the standard base or 75mm on an optional shallow base. The S3-BASE-SW shallow base matches this white body and comes in packs of five. Allow at least 10cm below the ceiling when fitting a shallow base so that the locking screw remains accessible. Keep the TOP mark facing upwards and the cable tails within 10cm. The base must remain surface mounted and the enclosure unpainted.
Vigilon commissioning uses the Vigilon Commissioning Tool V1.30 or later. For S-Cubed voice sounders, the S3-CONTROL infrared remote selects tone, speech message and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel. S-Cubed sounders and visual alarm devices synchronise across all loops of one panel; synchronisation does not extend across a network of panels.
Specifications
| Manufacturer's designation | S3 Voice Sounder/White Body |
|---|---|
| Device type | Wall mounted voice sounder, Gent S-Cubed Mark 3 range, for internal use |
| Sound output | S-Cubed sounder range rating: 103dB(A) +/-3dB at 90 degrees and 1m. |
| Tones | S-Cubed sounder signals: 1, intermittent 970Hz at 1Hz; 2, alternating 730Hz and 970Hz at 2Hz; 3, continuous 970Hz. Tone frequencies have a +/-10% tolerance. All three signals are LPCB approved. |
| Speech messages | S-Cubed voice sounder message set: 1, bell tone; 2, female emergency evacuation with Signal 3; 3, female announcement to await instructions with Signal 1; 4, female test announcement; 5, male fire alarm evacuation with Signal 2. |
| EN 54-3 Annex C | Message 3 with Signal 1 and Message 5 with Signal 2 are approved to EN 54-3 Annex C |
| Message and attention tone period | S-Cubed voice sounders: default period 10 seconds, adjustable up to 30 seconds with the commissioning tool. |
| Audio memory | S-Cubed voice sounders: storage for up to 20 seconds of audio and bell tone. |
| Volume and message selection | For S-Cubed voice sounders, the S3-CONTROL infrared remote selects tone, speech message and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel. |
| Visual alarm device | None fitted; audible alarm only |
| Body colour | White body RAL 9010 |
| Material and flammability | S-Cubed indoor range: polycarbonate body, ABS base; V2 flammability rating. |
| Ingress protection | S-Cubed indoor range: IP 21. |
| Application | S-Cubed indoor range: internal wall positions. |
| Loop operating voltage | S-Cubed indoor range: 35V to 48V. |
|---|---|
| Power source | Loop powered |
| Terminals | S-Cubed indoor range: loop in/out terminals 01, L1, 02 and L2; connect the loop screen to the metal box earth. |
| Short circuit isolator, EN 54-17 data | Integral isolator. S-Cubed indoor range limits: Vmax 48V; Vnom 40V; Vmin 24V; VSOmax 16V; VSOmin 8V; ICmax 0.8A; ISmax 1.25A; ILmax 50uA; ZCmax 0.13 ohm. |
| Approximate quantity per loop - Gent range datasheet | Approximate maximum quantities for S-Cubed voice sounders are 200 per loop, or 160 with bell sound (dependent on loop load). |
| Temperature and humidity | S-Cubed indoor range: operating temperature -10C to +50C; storage -20C to +70C; relative humidity up to 95% without condensation between +5C and +45C. |
| Dimensions | S-Cubed indoor range: 112mm square face; projection 90mm with the standard base or 75mm with the optional shallow base. |
| Base options | S3-BASE-SW is the optional white shallow base, supplied in packs of five. Indoor S-Cubed wall projection is 90mm with the standard base or 75mm with the shallow base. |
| Mounting | Supplied with a matching white standard base and one screw fitted in the base. For indoor S-Cubed installation, secure the base to a flat wall or metal box, with TOP facing upwards. Keep shallow bases at least 10cm below the ceiling for screw access and limit cable tails to 10cm. Keep the enclosure unpainted and the base surface mounted. |
| Infrared remote | For S-Cubed voice sounders, the S3-CONTROL infrared remote selects tone, speech message and volume from up to 3m away while the panel is in test mode. Hold the remote's power button to store the device settings. After a volume adjustment, save the new level at the panel. |
| Commissioning tool | S-Cubed commissioning on Vigilon: Vigilon Commissioning Tool V1.30 or later. |
| Panel software | Gent Vigilon Plus, Compact Plus and Nano addressable systems. |
| Siting and testing guidance | Test S-Cubed sound levels in the protected areas against the site requirements. |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| LPCB approved | Approved by the Loss Prevention Certification Board for fire detection and alarm system products. |
| EN 54-3:2001 + A1:2002 + A2:2006 | |
| EN 54-17:2005 + AC:2007 | |
| Declaration of Performance 084-CPR-2014 Issue 3 |
Approval body: Loss Prevention Certification Board (BRE Global Limited), System 1.
