Part Number or the Week S3EP-V-VAD-HPR-R

Power-Sonic Power Sonic Battery 14Ah - 12V Flame Retardant Used in S4-34440-ASD FAAST Interface

Part no.4015-604-YFR
BrandPower-Sonic
RangePowersonic

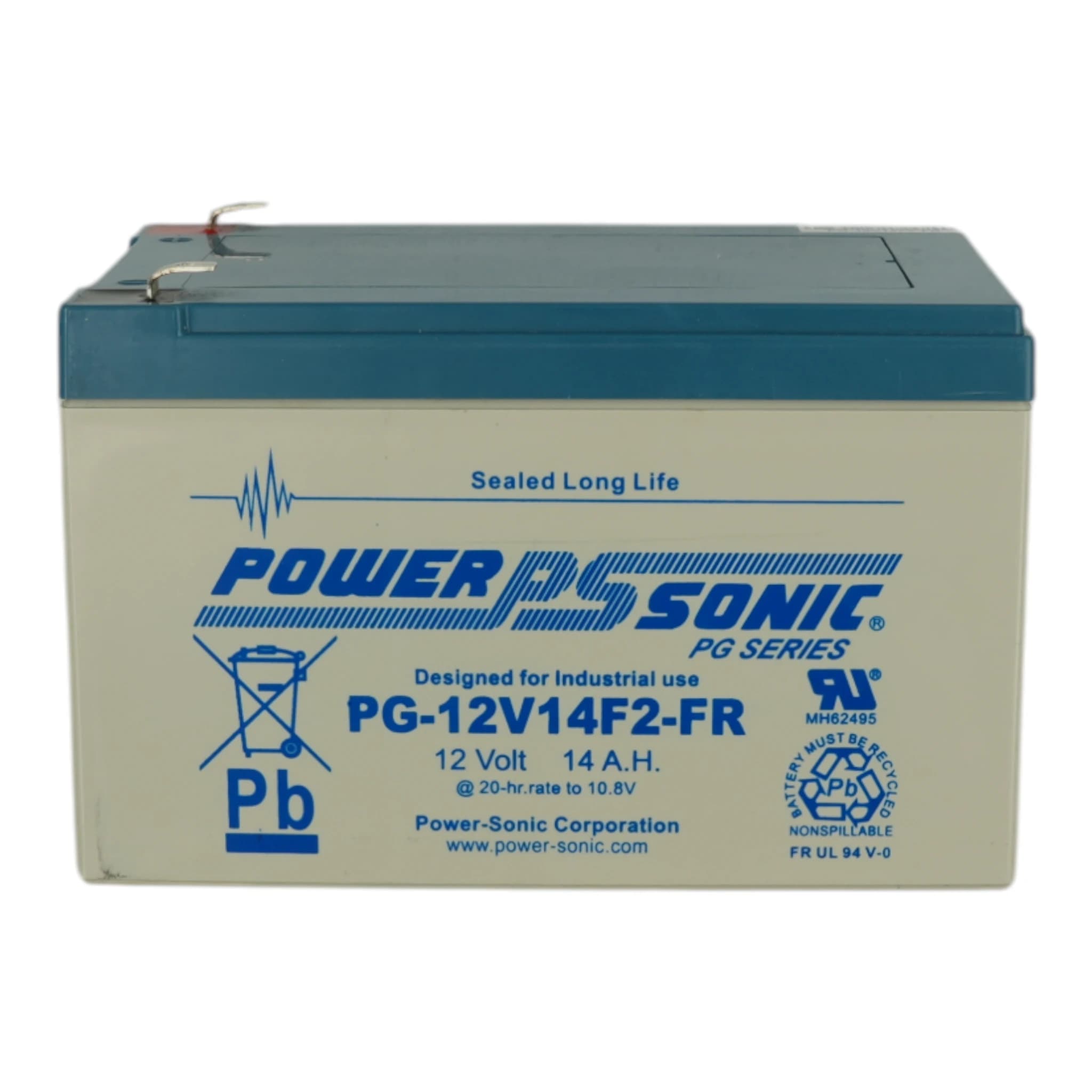

Power Sonic 4015-604-YFR 14Ah 12V Flame Retardant Battery — cream/beige battery with grey-blue top and F2 spade terminals

Image for illustration; item supplied may differ

At a glance

  • 12.0 Volts, 14.0AhNominal capacity is 14.0Ah at the 20-hour rate.
  • Long-life AGM batteryThe PG series has a float service life of 10 years.
  • Flame-retardant caseThe -YFR code identifies the flame-retardant (FR) configuration of the Power-Sonic PG-12V14.
  • Standby powerUsed as the standby power source in the S4-34440-ASD FAAST interface.
  • 151.0 x 98.0 x 95.0 mmDimensions are length x width x height; overall height to the terminal tops is 101.0 mm.
  • Approximate weight3.78 kg.

Documents

PDFBattery datasheet (4015-604-YFR) (PDF, 2.2 MB)
DescriptionSpecificationsDocumentsGuidesAlso in this range

Description

The 4015-604-YFR is the flame-retardant Power-Sonic PG-12V14, a 12 V 14.0Ah rechargeable long-life AGM battery for standby power in fire and security systems and the S4-34440-ASD FAAST interface. The -YFR code identifies the flame-retardant (FR) case configuration. It measures 151.0 x 98.0 x 95.0 mm (L x W x H) and weighs 3.78 kg. Total height to the terminal tops is 101.0 mm. The ABS case is UL94 HB or V-0 optional; the flame-retardant case is an optional configuration for the PG-12V14. The PG series has a float service life of 10 years. We supply it as a standalone standby cell.

4015-604-YFR is the flame-retardant configuration of the Power-Sonic PG-12V14. Nominal voltage is 12.0 Volts and nominal capacity is 14.0Ah at the 20-hour rate.

Read the full technical description

4015-604-YFR is the flame-retardant configuration of the Power-Sonic PG-12V14. Nominal voltage is 12.0 Volts and nominal capacity is 14.0Ah at the 20-hour rate.

The battery measures 151.0 x 98.0 x 95.0 mm (L x W x H), with a tolerance of +/- 2 mm on length, width and height. Overall height to the terminal tops is 101.0 mm and approximate weight is 3.78 kg.

The ABS case is UL94 HB or V-0 optional. The flame-retardant case is an optional configuration for the PG-12V14. The model is available as PG-12V14 F2 and PG-12V14 FR F2; FR identifies the flame-retardant case. The 4015-604-YFR has the FR case and F2 terminals.

Approximate internal resistance is 14.0 milliohms. Maximum short-circuit discharge current is 392.0A. The recommended charger is the Power-Sonic PSC-121000ACX.

The operating temperature range is −20°C to 40°C on charge and −15°C to 50°C on discharge.

Specifications

Battery type / seriesPG Series long-life AGM battery
Nominal voltage12.0 Volts; 6.0 cells
Nominal capacity (by discharge rate)20-hr. (0.7A to 10.5 Volts): 14.0Ah; 10-hr. (1.32A to 10.5 Volts): 13.2Ah; 5-hr. (2.44A to 10.2 Volts): 12.2Ah; 1-hr. (9.2A to 9.6 Volts): 8.5Ah
Dimensions (length, width)Length: 5.94 in (151.0 mm); width: 3.86 in (98.0 mm)
Dimensions (height, total height)Height: 3.74 in (95.0 mm); total height: 3.98 in (101.0 mm)
Dimension tolerance+/- 0.08 in (+/- 2 mm) on length, width and height
Approximate weight8.33 lbs (3.78 kg)
Case materialABS (UL94 HB or V-0 optional)
Configuration options / terminals (this SKU = FR, F2)PG-12V14 F2; PG-12V14 FR F2
Internal resistance (approx.)14.0 mΩ
Max short circuit discharge current392.0 A
Operating temperature rangeCharge: −4°F (−20°C) to 104°F (40°C); discharge: 5°F (−15°C) to 122°F (50°C)
SLA float life10 years

Specifications per manufacturer documentation, subject to change. E&OE.
