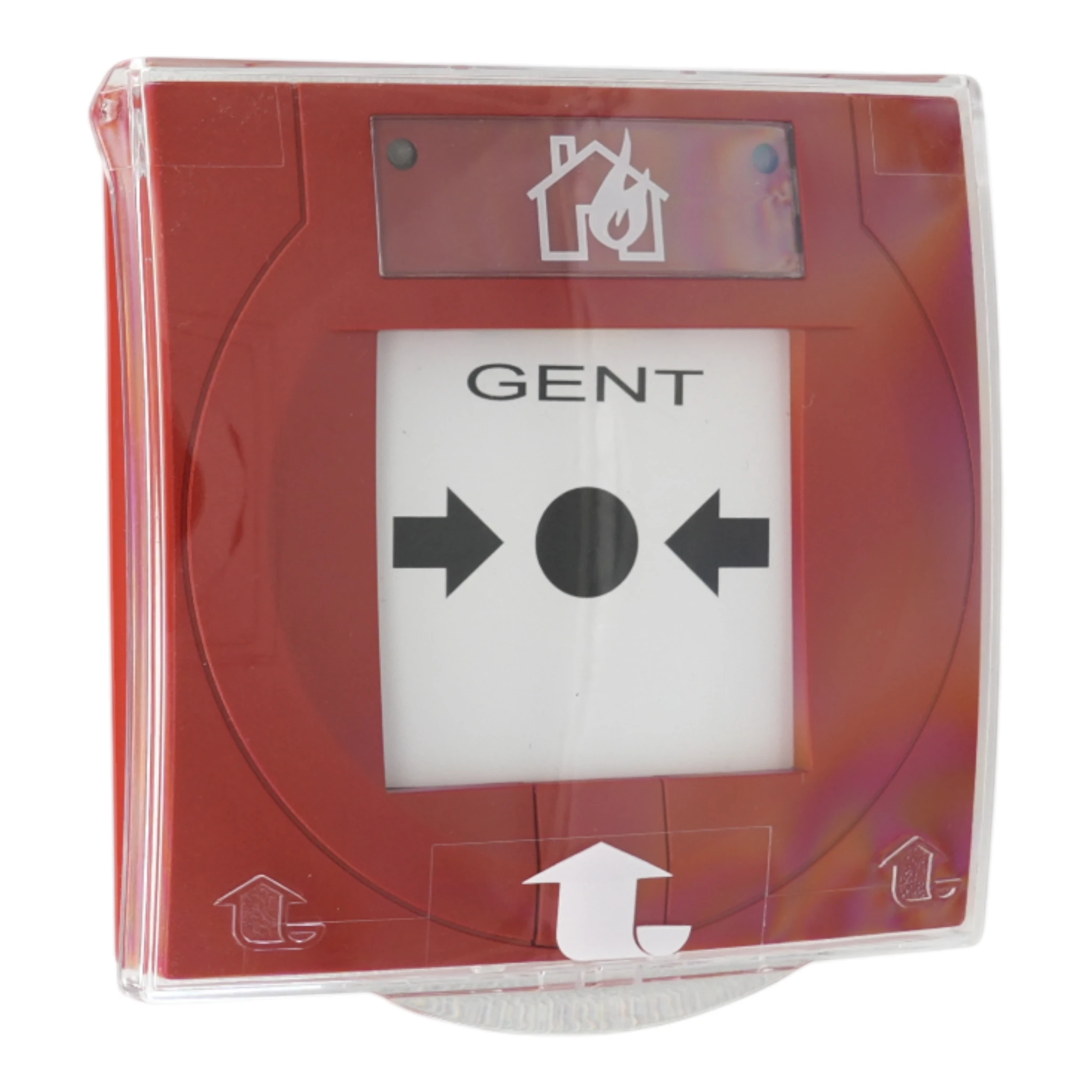

Gent Vigilon Manual Call Point with Resettable Element and Protective Cover (excludes back box)
| Part no. | S4-34845 |
|---|---|
| Brand | Gent |
| Range | S4 MCPs & Accessories |
| Sub-range | Manual Call Points |
Image for illustration; item supplied may differ
At a glance
- Resettable operating elementRestore the plastic element with the test key after activation.
- Protective cover includedLift the protective cover before pressing the element.
- Replacement elementsS4-34890 supplies ten replacement resettable elements.
- Loop supply and isolationThe standard MCP range uses loop power at 35-48 V and has built-in short circuit isolation.
- Surface or semi-flush mountingThe standard MCP range fits a red S4-34895 surface box or a standard electrical box recessed into the wall.
- EN 54-11 and EN 54-17LPCB approved manual call point with short circuit isolation.
Description
The Gent S4-34845 is an indoor addressable manual call point with a plastic resettable element and a lift-up cover. It raises a fire signal when the centre is pressed. The element is reset with a test key after use. It takes power from the loop and has a built-in short circuit isolator. In the standard MCP range, a red LED and yellow tab show activation; a green LED gives status and find-device indication. The back box is ordered separately; S4-34895 is the red surface box. The standard MCP range accepts cables up to 2.5 mm2. The standard range supports Gent Vigilon Plus, Compact Plus and Nano analogue addressable fire alarm systems.
S4-34845 uses a plastic element that can be reset after emergency operation. Its protective cover lifts to expose the element. Pressing the centre activates the call point, displays the yellow tab and starts the red LED flashing.
Read the full technical description
S4-34845 uses a plastic element that can be reset after emergency operation. Its protective cover lifts to expose the element. Pressing the centre activates the call point, displays the yellow tab and starts the red LED flashing.
To reset the element, slide the keyhole cover upwards, insert the test key and turn it clockwise to engage the mechanism. Turn it anticlockwise to restore the element. S4-34890 contains ten replacement resettable elements. The standard MCP range can also be tested in place with the supplied test key.
The back box is a separate item. Use S4-34895 for surface mounting, or fit a standard electrical box into the wall before installing the assembly for a semi-flush finish. The standard MCP range has an 88 x 88 mm body, 21 mm deep, with a surface-mounted depth of 57 mm. Across this range, estimated IP55 applies when both a protective cover and a back box are fitted.
The standard S4 MCP range runs from the addressable loop at 35-48 V and includes short circuit isolation. Its removable terminal block accepts conductors up to 2.5 mm2. Maintain loop cable earth continuity through the earth strap or back box earth point. The green LED supports status and find-device indication. Range operating limits are -25°C to +70°C, with up to 95% non-condensing relative humidity at +25°C to +55°C.
Gent analogue addressable systems include Vigilon Plus, Compact Plus and Nano. S4-34845 meets EN 54-11 and EN 54-17 and is LPCB approved.
Specifications
| Device type | Analogue addressable manual call point |
|---|---|
| Application | Indoor fire alarm activation |
| Element | Resettable plastic |
| Protective cover | Included |
| Back box | Ordered separately |
| Surface back box | S4-34895 |
| Replacement element | S4-34890; pack of 10 |
| Power source | Loop powered |
| Range operating voltage | Standard MCP range: 35-48 V |
| Range isolation | Standard MCP range: built-in short circuit isolator |
| Range dimensions | Standard MCP range: 88 x 88 x 21 mm (H x W x D) |
| Range surface-mounted depth | Standard MCP range: 57 mm |
| Range ingress protection | Standard MCP range: estimated IP43; estimated IP55 with protective cover and back box |
| Range operating temperature | Standard MCP range: -25°C to +70°C |
|---|---|
| Range storage temperature | Standard MCP range: -30°C to +70°C |
| Range relative humidity | Standard MCP range: up to 95%, non-condensing, at +25°C to +55°C |
| Range case material | Standard MCP range: ABS engineering plastic |
| Range colour | Standard MCP range: red, similar to RAL 3020 |
| Range terminal capacity | Standard MCP range: maximum 2.5 mm2 |
| Range terminal block | Standard MCP range: removable |
| Range status indication | Standard MCP range: green LED for status and find-device |
| Range activation indication | Standard MCP range: red LED and yellow tab |
| Range testing | Standard MCP range: test key supplied for in-place operation testing |
| Range isolator voltage data | Standard MCP range: Vmax 48 V; Vnom 40 V; Vmin 35 V; VSO max 16 V; VSO min 8 V |
| Range isolator current data | Standard MCP range: IC max 0.8 A; IS max 1.25 A |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| LPCB approved | Approved by the Loss Prevention Certification Board for fire detection and alarm system products. |
| EN 54-11:2005 | |
| EN 54-17:2005 / AC:2007 |
Approval body: Loss Prevention Certification Board (BRE Global Limited).
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Datasheet (S4-34805-EP, S4-34807, S4-34845, S4-34890, S4-34891 +2 more) | Datasheet | 153 KB | Download PDF |
Optional accessories
- S4-34890Resettable Element for Vigilon MCP (sold in packs of 10) price per packRESETTABLE ELEMENT FOR MCP (PACK OF 10) S4-34890£47.73ex VAT£57.28 inc VATIn stock
- S4-34892Protective Cover for S4-34800 and S4- 34805 (sold in pack of 20) price per packPROTECTIVE COVER FOR MCP (PACK OF 20) S4-34892£131.68ex VAT£158.02 inc VATIn stock
- S4-34895Surface Back Box (red) for S4-34800 range of MCP's (Sold in packs of 10) price per packSURFACE BACK BOX FOR MCP (RED PLASTIC) (PACK OF 10) S4-34895£20.59ex VAT£24.71 inc VATIn stock
Spares & replacement parts
- S4-34890Resettable Element for Vigilon MCP (sold in packs of 10) price per packPack of 10 replacement resettable elements.£47.73ex VAT£57.28 inc VATIn stock
FAQs
How is the S4-34845 operated and restored?
The S4-34845 has a plastic resettable element. Lift the protective cover and press the centre of the element to activate it. The yellow tab becomes visible and the red LED flashes. To restore the element, expose the keyhole, insert the test key and turn it clockwise to engage the mechanism, then anticlockwise to reset. Replacement elements are available as S4-34890, supplied in packs of ten for the standard MCP range.
Which back box does the S4-34845 use?
The S4-34845 is supplied without a back box. For a surface installation, the red S4-34895 back box is available separately. For a semi-flush installation, fit a standard electrical box into the wall before mounting the call point assembly. The standard MCP range measures 88 x 88 mm, with a body depth of 21 mm and a surface-mounted depth of 57 mm. Its fitted protective cover forms part of the covered configuration.
How is the S4-34845 tested with the key?
The S4-34845 can be tested in place using the test key supplied with the standard MCP range. Lift the protective cover, then slide the keyhole cover upwards. Insert the key and rotate it clockwise by a quarter turn. This lowers the element and yellow tab, activating the call point. Reverse the key movement to return the call point to its normal position. The standard MCP range uses a green LED for status and find-device indication.
How does the S4-34845 connect to the loop?
The S4-34845 takes its power from the addressable loop. The standard S4 MCP range operates at 35-48 V and includes short circuit isolation, with loop connections on a removable terminal block accepting conductors up to 2.5 mm2. During installation, carry the loop cable earth continuity through the earth strap or the back box earth point. The range uses a green LED for status and find-device indication, with a red LED and yellow tab showing activation.
How does the S4-34845 differ from the S4-34842?
The S4-34845 and S4-34842 both include a lift-up protective cover, but their operating elements differ. S4-34845 uses a plastic element restored with a test key; S4-34842 uses glass that is replaced after emergency operation. Both are indoor analogue addressable call points supplied without a back box. In the standard MCP range, estimated IP55 applies to the configuration with both a protective cover and a back box fitted. The red surface box is S4-34895.
