Gent Vigilon Manual Call Point with Glass Element IP 43 (excludes back box)
| Part no. | S4-34800 |
|---|---|
| Brand | Gent |
| Range | S4 MCPs & Accessories |
| Sub-range | Manual Call Points |

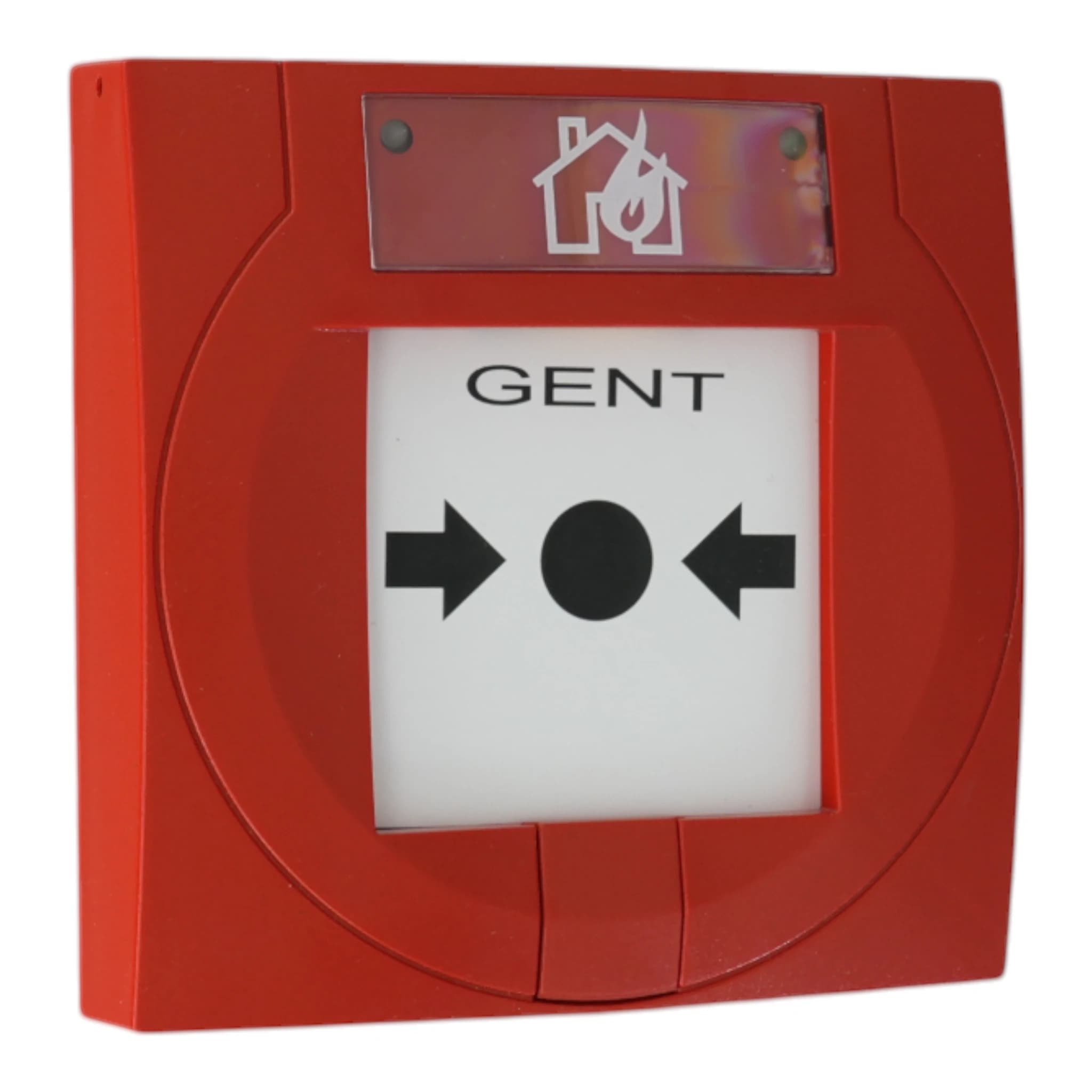

Image for illustration; item supplied may differ
At a glance
- Glass operating elementThe glass is replaced after emergency activation.
- Manual fire activationPress the centre of the element to activate the call point.
- Optional lift-up coverS4-34892 fits this call point and is supplied in packs of twenty.
- Optional IP rated coverS4-34896 is an optional plastic protective cover for this model.
- Separate surface back boxS4-34895 provides the surface mounting option; the call point excludes a back box.
- EN 54-11 and EN 54-17LPCB approved indoor manual call point.
Description
The Gent S4-34800 is an indoor addressable manual call point with a glass element that is replaced after emergency use. Press the centre to raise the alarm. It takes power from the loop. The standard MCP range has a red LED and yellow tab for fire indication, plus a green LED for status and finding the device. The back box is separate: S4-34895 is the red surface box. S4-34892 is an optional lift-up protective cover, and S4-34896 is an optional IP rated plastic cover. A test key is supplied with the standard MCP range for testing the call point in place. Replacement glass is S4-34891, in packs of ten.
The S4-34800 uses a non-resettable glass element that is replaced after emergency operation. S4-34891 supplies replacement glass in packs of ten.
Read the full technical description
The S4-34800 uses a non-resettable glass element that is replaced after emergency operation. S4-34891 supplies replacement glass in packs of ten.
S4-34800 accepts two optional covers: S4-34892, a lift-up protective cover supplied in packs of twenty, and S4-34896, an IP rated plastic protective cover. With S4-34892 fitted, lift the cover before pressing the centre of the call point. S4-34842 is the glass-element variant supplied with a protective cover.
The back box is supplied separately. Use S4-34895 for surface mounting, or a standard electrical box recessed into the wall for semi-flush mounting. The standard MCP assembly measures 88 x 88 x 21 mm, with a depth of 57 mm when surface mounted. Two supplied long screws secure the assembly to the box.
The standard S4 MCP range is powered from the addressable loop at 35-48 V and includes short circuit isolation. Its removable terminal block accepts conductors up to 2.5 mm2. Carry the loop cable earth continuity through the earth strap or the back box earth point. The range has an estimated IP43 rating in its standard configuration and operates from -25°C to +70°C.
The standard MCP range has a green LED for status and find-device indication, with a red LED and yellow tab for fire indication. A supplied test key allows operation to be tested in place: expose the keyhole and turn the key clockwise by a quarter turn, then reverse the action to restore normal operation. S4-34800 is an indoor manual call point approved to EN 54-11 and EN 54-17.
Specifications
| Device type | Analogue addressable manual call point |
|---|---|
| Application | Indoor fire alarm activation |
| Element | Non-resettable glass |
| Optional protective cover | S4-34892; lift-up cover, pack of 20 |
| Optional IP rated cover | S4-34896; plastic protective cover |
| Back box | Supplied separately |
| Surface back box | S4-34895 |
| Replacement element | S4-34891; pack of 10 |
| Power source | Loop powered |
| Range operating voltage | Standard MCP range: 35-48 V |
| Range isolation | Standard MCP range: short circuit isolation |
| Range dimensions | Standard MCP assembly: 88 x 88 x 21 mm (H x W x D) |
| Range surface-mounted depth | Standard MCP assembly: 57 mm |
|---|---|
| Range ingress protection | Standard MCP range: estimated IP43 in standard configuration |
| Range operating temperature | Standard MCP range: -25°C to +70°C |
| Range storage temperature | Standard MCP range: -30°C to +70°C |
| Range relative humidity | Standard MCP range: up to 95%, non-condensing, at +25°C to +55°C |
| Range case material | Standard MCP range: ABS engineering plastic |
| Range colour | Standard MCP range: red, similar to RAL 3020 |
| Range terminal capacity | Standard MCP range: maximum 2.5 mm2 |
| Range terminal block | Standard MCP range: removable |
| Range status indication | Standard MCP range: green LED for status and find-device |
| Range activation indication | Standard MCP range: red LED and yellow tab |
| Range testing | Standard MCP range: supplied test key for in-place operation testing |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| LPCB approved | Approved by the Loss Prevention Certification Board for fire detection and alarm system products. |
| EN 54-11:2005 | |
| EN 54-17:2005 / AC:2007 |
Approval body: Loss Prevention Certification Board (BRE Global Limited).
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Datasheet (S4-34800, S4-34805, S4-34842) | Datasheet | 159 KB | Download PDF |
Optional accessories
- S4-34892Protective Cover for S4-34800 and S4- 34805 (sold in pack of 20) price per packLift-up protective cover for the MCP.£131.68ex VAT£158.02 inc VATIn stock
Spares & replacement parts
- S4-34891Replacement Glass for S4-34800 (sold in pack of 10) price per packPack of 10 replacement glass elements.£29.90ex VAT£35.88 inc VATIn stock
FAQs
How is the S4-34800 operated and restored?
Press the centre of the S4-34800 glass element to activate the call point. If S4-34892 is fitted, lift that cover first. The standard MCP range signals activation with a flashing red LED and a visible yellow tab. After emergency use, replace the glass element. S4-34891 replacement glass is supplied in packs of ten. The test key opens the front fascia and also allows the call point to be tested in place.
Which optional covers fit the S4-34800?
The S4-34800 accepts S4-34892 as an optional lift-up protective cover and S4-34896 as an optional IP rated plastic protective cover. S4-34892 has a top hinge and a see-through face, and is supplied in packs of twenty. With this lift-up cover fitted, raise it before pressing the centre of the call point. The call point is supplied without a back box; S4-34895 is its separate red surface back box. S4-34842 is the covered glass-element variant.
Which back box does the S4-34800 use?
The S4-34800 is supplied without a back box. S4-34895 is the separate red surface back box for this call point. The standard MCP range also supports semi-flush installation on a standard electrical box recessed into the wall. Two supplied long screws secure the call point assembly to the chosen box. The common assembly measures 88 x 88 x 21 mm; its depth is 57 mm when surface mounted. Both protective cover options are separate optional accessories.
How is the S4-34800 tested in place?
The S4-34800 can be tested with the key supplied with the standard MCP range. Slide the keyhole cover upwards, insert the key and turn it clockwise by a quarter turn. This lowers the glass and yellow tab to activate the call point. Reverse the movement to restore normal operation. The standard MCP range provides red LED and yellow-tab fire indication, with a green LED for status and find-device indication. The test uses the call point's concealed keyhole.
How does the S4-34800 connect to the loop?
The S4-34800 takes power from the addressable loop. The standard S4 MCP range operates at 35-48 V and includes short circuit isolation. Connect the loop wiring to the removable terminal block, which accepts conductors up to 2.5 mm2. Keep the loop cable earth continuous through the earth strap or the earth point in the back box. The range uses a green LED for status and finding a device, while a red LED and yellow tab indicate activation.
Also in this range
- S4-34842Vigilon Manual Call Point with Glass Element and Protective Cover (excludes back box)Includes a protective cover.£79.54ex VAT£95.45 inc VATIn stock
