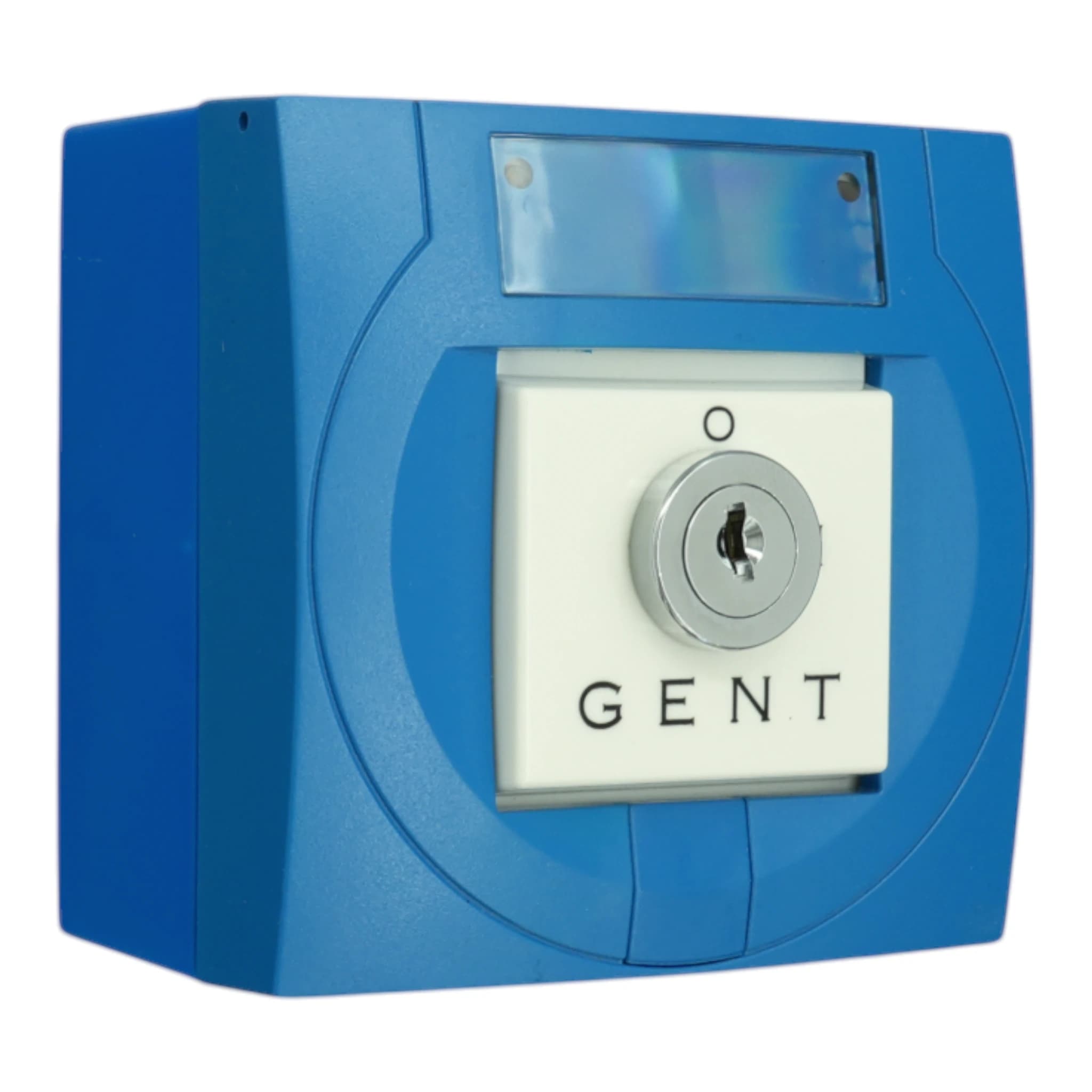

Gent Key switch Interface (Single Channel) c\w blue Enclosure
| Part no. | S4-34418 |
|---|---|
| Brand | Gent |
| Range | S4 Interfaces & Accessories |
| Sub-range | Keyswitch Interface |
Image for illustration; item supplied may differ
At a glance
- One supervisory inputThe key contact provides one supervisory input. Turning the key operates the channel, and command builds use channel 1. The unit uses one loop address.
- Blue back box includedSupplied with the blue back box, two operating keys, one opening key, one earth strap, two long screws and one instruction leaflet.
- Plant controlThe blue key switch interface controls plant. Label the unit to identify the plant it controls.
- Two key positions with local indicationTurn the key clockwise to the stop to activate the switch: the red indicator flashes and the green indicator gives an operating indication. Reverse the procedure to return to normal. Positions are O for Normal and I for Active.
- Loop poweredPower and address come from the device loop at 35V to 48V. One removable terminal block accepts conductors up to 2.5mm² for loop in and loop out. The supplied earth strap or back box earth point maintains earth continuity.
- Surface or semi-flush mountingMounts on a standard electrical box or the supplied back box. Dimensions are 88mm by 88mm and 32mm deep, or 66mm deep when surface mounted. Flush the electrical box into the wall before semi-flush fitting. Ingress protection is IP43 (estimated, not tested).
Description
The Gent S4-34418 is a single channel key switch interface for plant control in Gent analogue addressable fire alarm systems. The key contact provides one supervisory input, triggering a command build on channel 1 from a key operated position away from the panel. Power and address come from the device loop, connected loop in and loop out through a removable terminal block. The unit is supplied in a blue enclosure with its blue back box, two operating keys and one opening key. It mounts on the supplied back box or a standard electrical box, with surface and semi-flush mounting options.
The S4-34418 is a single channel key switch interface in a blue enclosure for plant control. Its key contact provides one supervisory input, and command builds use channel 1. The unit uses one loop address and takes power from the device loop at 35V to 48V. It is suitable for Gent analogue addressable fire alarm systems.
Read the full technical description
The S4-34418 is a single channel key switch interface in a blue enclosure for plant control. Its key contact provides one supervisory input, and command builds use channel 1. The unit uses one loop address and takes power from the device loop at 35V to 48V. It is suitable for Gent analogue addressable fire alarm systems.
The field wiring consists of loop in and loop out connections on one removable terminal block accepting conductors up to 2.5mm². Connect the previous device to loop in and the next device to loop out. Maintain loop cable earth continuity through the supplied earth strap or the earth point in the back box.
Insert the operating key into the front keyhole and turn it clockwise to the stop. The red indicator flashes and the green indicator gives an operating indication. Reverse the procedure to return the switch to normal. The two positions are O for Normal and I for Active. The green indicator also serves the panel's find device function. Label a unit used for plant control to describe the plant it controls.
Mount the assembly on a standard electrical box or the supplied blue back box. For semi-flush mounting, flush the standard electrical box into the wall before fitting the assembly. The back box has three recessed cable entry centres at the top and one at the bottom; a maximum of two are usable. Use fire rated cables through the entries. Release the front cover with the end of the supplied opening key and lift it out from the bottom edge. Each unit includes one interface assembly, one blue back box, two operating keys, one opening key, one earth strap, two long screws and one instruction leaflet.
The unit is 88mm high by 88mm wide and 32mm deep, or 66mm deep when surface mounted. It weighs 128g without the back box and 192g with it. The case is ABS engineering plastic, blue similar to RAL 5015. Ingress protection is IP43 (estimated, not tested). Operating temperature is -25°C to +70°C, storage temperature is -30°C to +70°C, and relative humidity is up to 95 per cent non-condensing over +25°C to +55°C. Standards are EN 54 Part 17 and EN 54 Part 18.
Specifications
| Type | Single channel key switch interface, blue enclosure, for plant interface applications |
|---|---|
| Input channels | 1 supervisory channel, operated by the key contact within the assembly; command builds use channel 1 |
| Power source | Loop powered; power and address from the device loop of a Gent analogue addressable fire alarm system |
| Operating voltage | 35V to 48V |
| Terminals | One removable terminal block, 2.5mm² maximum. Wired loop in from the previous device and loop out to the next |
| Indicators | Green LED for status and find device application; red LED for the active state |
| Key positions | Two positions: O for Normal and I for Active. Turn the operating key clockwise to the stop to activate; reverse the procedure to return to normal |
| Supplied with | Key switch interface assembly x1, blue back box x1, operating key x2, opening key x1, earth strap x1, long screw x2, instruction leaflet x1 |
| Spare keys | S4-34499, pack of two. Two operating keys are already supplied with the unit |
| Mounting | On a standard electrical box or on the supplied back box. For semi-flush fixing, a standard electrical box must first be flushed into the wall |
| Cable entries | Back box recessed centres: three at the top and one at the bottom; a maximum of two usable. Use fire rated cables through the entry holes |
| Earthing | Loop cable earth continuity is maintained through the supplied earth strap or the earth point in the back box |
| Cover removal | The front cover is disengaged with the end of the supplied opening key and lifted out from the bottom edge |
|---|---|
| Dimensions | 88mm high x 88mm wide; 32mm deep, or 66mm deep when surface mounted |
| Weight | 128g without back box; 192g with back box |
| Enclosure material and colour | ABS engineering plastic; blue, similar to RAL 5015 |
| Ingress protection | IP43 (estimated, not tested) |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -30°C to +70°C |
| Relative humidity | Up to 95% non-condensing, +25°C to +55°C |
| Standards | EN 54: Part 17 and EN 54: Part 18 |
| EMC | Emission BS EN 61000-6-3:2007 + A1:2011; immunity BS EN 50130-4:2011 |
| EN 54-17 data | Vmax 48V, Vnom 40V, Vmin 35V, VSO max 16V, VSO min 8V, IC max 0.8A, IS max 1.25A, ZC max 0.13 ohm |
Specifications per manufacturer documentation, subject to change. E&OE.
Standards and approvals
| Standard | What it covers |
|---|---|
| EN 54-17 | |
| EN 54-18 |
Documents
| Document | Type | Size | Download |
|---|---|---|---|
| Data & Installation - S4 Keyswitch Interface (4188-910 issue 5) | Installation | 474 KB | Download PDF |
Spares & replacement parts
- S4-34499Set of 2 Keys for Key switch Interface & MCPSpare keys for the keyswitch interface.£27.77ex VAT£33.32 inc VATIn stock
FAQs
Does the S4-34418 come with a back box and keys?
Yes. The S4-34418 includes its blue back box, two operating keys, one opening key, one earth strap, two long screws and one instruction leaflet. The interface assembly mounts on the supplied back box or a standard electrical box. The operating keys turn the switch, and the opening key releases the front cover. The S4-34499 is a separate pack of two spare operating keys for replacing lost keys or providing additional sets for the site.
What does the S4-34418 do on a Gent system?
The S4-34418 provides one supervisory input on the loop, operated by the key contact inside the assembly. Turning the key changes the state seen by the panel and triggers a command build on channel 1. The blue enclosure variant provides key operated plant control away from the panel. Label the unit to describe the plant it controls. Power and address come from the device loop of a Gent analogue addressable fire alarm system.
How is the S4-34418 set up in the Gent commissioning tool?
Highlight the S4-34418 in the Gent commissioning tool. Set the device type to interface unit and the device selection to loop powered. Press the change button above the device selection, answer no to each of the three prompts and save the settings. After a fresh download, the device appears as a KS interface on the device configuration screen. The interface has one supervisory input, operated by its internal key contact.
How does the key switch operate, and what do the indicators show?
Insert the operating key into the front keyhole and turn it clockwise to the stop position. The red indicator flashes and the green indicator gives an operating indication. Reverse the procedure to return the key switch to normal. The positions are marked O for Normal and I for Active. The green indicator also serves the panel's find device function. Use the separate opening key supplied with the unit to release the front cover.
Where can the S4-34418 be mounted, and what protection does the enclosure give?
Mount the S4-34418 on a standard electrical box or its supplied back box. For semi-flush fitting, flush the standard electrical box into the wall before fitting the key switch assembly. The back box has three recessed cable entry centres at the top and one at the bottom, with a maximum of two usable. Use fire rated cables through the entries. Ingress protection is IP43 (estimated, not tested). The unit is 66mm deep when surface mounted.
