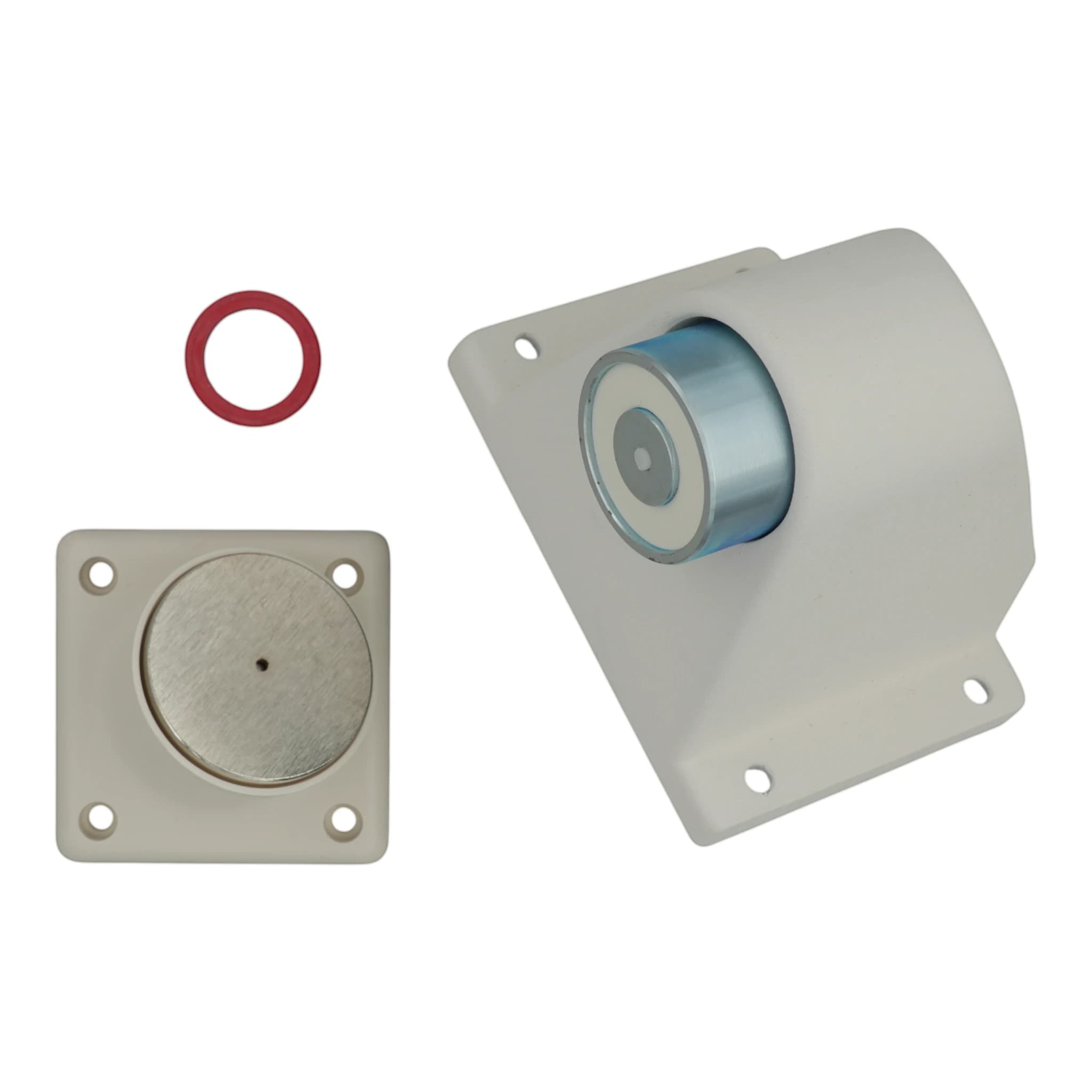

Gent Magnet Door Holder Floor Mounted 24V DC 45mA
| Part no. | 04390-41 |
|---|---|
| Brand | Gent |
| Range | Door Holders |
Image for illustration; item supplied may differ
At a glance
- Floor Mounted Door Holder04390-41 is a floor mounted electromagnetic door holder for buildings requiring an automatic door release function in the event of a fire emergency.
- 24V DC SupplyOperating voltage is 24V dc with a current consumption of 45mA.
- 200N Magnet HoldThe electromagnet holds at 200N.
- Low Profile DesignThe unit uses a low profile design with easy cable entry and exit.
- Ambient Temperature RangeAmbient temperature is 0°C to +35°C.
- Painted Housing FinishThe finish is a White painted housing with zinc plated magnet, and the unit weighs 700g.
- Standards ComplianceThe electromagnets in this range are designed to comply with the latest requirements of EN61000-3-2, EN50081-1, EN60950 and EN1155 (CPD Approved).
Description
The 04390-41 answers the need for an automatic door release function in buildings where a fire emergency must close the doors. Mounted at floor level, it runs from 24V dc, takes 45mA and holds at 200N until power is removed.
Construction is low profile with easy cable entry and exit, the housing White painted with a zinc plated magnet, and the assembly weighs 700g. Ambient temperature is rated 0°C to +35°C. On power off a centrally mounted spring loaded release pin pushes the door away from the electromagnet, overcoming residual magnetism and ensuring correct operation.
04390-41 is a floor mounted 24V DC electromagnetic door holder intended for buildings requiring an automatic door release function in the event of a fire emergency. In a fire emergency the holder releases so that fire doors close, preventing fire and smoke from spreading. The unit consumes 45mA and produces a holding force of 200N.
The design is low profile with easy cable entry and exit, the housing White painted and the magnet zinc plated, and the unit weighs 700g. Ambient temperature runs from 0°C to +35°C. An integral release button allows the door to be closed by hand without operating the fire alarm, with push button release and test.
A spring loaded release pin mounted centrally within the electromagnet pushes the door away on power off, overcoming any residual magnetism and ensuring correct operation. As a DC unit it is polarised and suppressed, with a suppression diode and reverse polarity protection allowing use on a reverse polarity monitored circuit.
Read the full technical description
The integral release button closes the door by hand without operating the fire alarm, and push button release and test is provided. Across the range, the electromagnets are designed to comply with the latest requirements of EN61000-3-2, EN50081-1, EN60950 and EN1155 (CPD Approved).
04390-41 is a floor mounted 24V DC electromagnetic door holder intended for buildings requiring an automatic door release function in the event of a fire emergency. In a fire emergency the holder releases so that fire doors close, preventing fire and smoke from spreading. The unit consumes 45mA and produces a holding force of 200N.
The design is low profile with easy cable entry and exit, the housing White painted and the magnet zinc plated, and the unit weighs 700g. Ambient temperature runs from 0°C to +35°C. An integral release button allows the door to be closed by hand without operating the fire alarm, with push button release and test.
A spring loaded release pin mounted centrally within the electromagnet pushes the door away on power off, overcoming any residual magnetism and ensuring correct operation. As a DC unit it is polarised and suppressed, with a suppression diode and reverse polarity protection allowing use on a reverse polarity monitored circuit.
The electromagnets in this range are designed to comply with the latest requirements of EN61000-3-2, EN50081-1, EN60950 and EN1155 (CPD Approved).
Specifications
| Description | Magnet Door Holder floor mounted 24V DC 45mA |
|---|---|
| Voltage | 24V dc |
| Current consumption | 45mA |
| Holding force | 200N |
| Approx weight | 700g |
| Finish | White painted housing, zinc plated magnet |
| Ambient temperature | 0°C to +35°C |
| Mounting | Floor mounted |
|---|---|
| Release mechanism | Integral manual release button, allowing the door to be closed without operating the fire alarm |
| Supplied with | Door mounting keeper plate |
| Anti residual magnetism | Fitted with a spring loaded release pin mounted centrally within the electromagnet; on power off, the release pin pushes the door away from the electromagnet to overcome any residual magnetism |
| Dc protection | D.C. unit is fitted with a suppression diode and protection against reverse polarity such that it may be operated from a reverse polarity monitored circuit |
| Housing | Low profile, flame retardant ABS housing containing a push button for quick, easy release of the door |
Specifications per manufacturer documentation, subject to change. E&OE.
