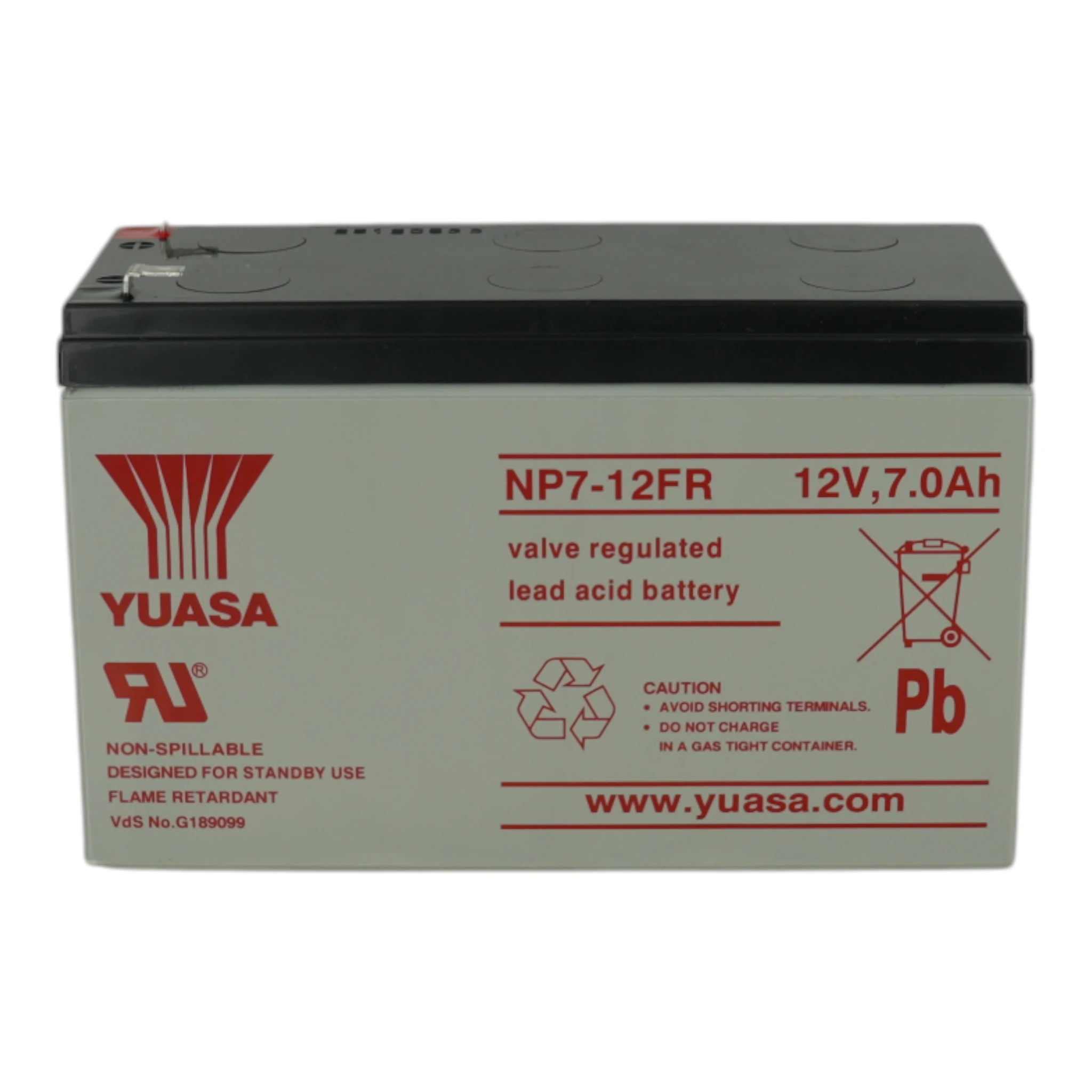

Yuasa NP7-12 12V 7Ah VRLA AGM Battery
- Battery chemistry
- Absorbed Glass Mat (AGM) Valve Regulated Lead-Acid (VRLA)
- Nominal voltage
- 12
- Capacity
- 7.0 Ah
- Capacity rate
- 20-hr rate, 1.75vpc @ 25°C (77°F)
- Design life
- 4-6 Years
- Operating temperature discharge
- -20°C to 60°C (-4°F to 140°F)
- Max charge current
- 1.750 A
Overview
What it is and how it fits the system.
The Yuasa NP7-12 is a 12V, 7.0 Ah Valve Regulated Lead-Acid (VRLA) Absorbed Glass Mat (AGM) battery from the NP/NPX Series, built with HT X Alloy high-temperature chemistry for fire protection, life safety and standby applications. Rated at the 20-hr rate (1.75vpc at 25°C) with a 4-6 year design life, it supports float charging at 2.275V/cell and cyclic charging at 2.45V/cell. It operates across a wide discharge temperature range of -20°C to 60°C.
Technical overview
The NP7-12 is a 12V, 7.0 Ah Valve Regulated Lead-Acid (VRLA) Absorbed Glass Mat (AGM) battery from the Yuasa NP/NPX Series with HT X Alloy high-temperature chemistry. Designed for fire protection, life safety and standby applications, it supports float charging at 2.275V/cell and cyclic charging at 2.45V/cell, with temperature corrections of -3mV/°C/cell and -4mV/°C/cell respectively. Rated at the 20-hr rate (1.75vpc at 25°C), it offers a 4-6 year design life and operates across a discharge temperature range of -20°C to 60°C.
Internal resistance is approximately 22.0 mΩ with a maximum charge current of 1.750 A. Compatible variants include NP7-12-250FR, NP7-12-250, NP7-12FR, and NP7-12-TAA, and it supersedes the RB70FR model. Applications span power packs, solar and wind support systems, UPS, emergency lighting, fire protection, life safety, and security systems. Physical connection details are documented in the installation manual.
Specifications
Full technical data for this part.
| Battery chemistry | Absorbed Glass Mat (AGM) Valve Regulated Lead-Acid (VRLA) |
|---|---|
| Nominal voltage | 12 |
| Capacity | 7.0 Ah |
| Capacity rate | 20-hr rate, 1.75vpc @ 25°C (77°F) |
| Design life | 4-6 Years |
| Float charge voltage | 2.275±1%/cell |
| Float charge temperature correction | -3mV per °C/cell (from 25°C / 77°F) |
| Cyclic charge voltage | 2.45±2%/cell |
| Cyclic charge temperature correction | -4mV per °C/cell (from 25°C / 77°F) |
| Operating temperature discharge | -20°C to 60°C (-4°F to 140°F) |
| Operating temperature charge | -15°C to 50°C (5°F to 122°F) |
| Operating temperature storage | -20°C to 60°C (-4°F to 140°F) (in fully charged condition) |
| Internal resistance | ~22.0 mΩ |
| Max charge current | 1.750 A |
Specifications sourced from manufacturer documentation.
Specifications per manufacturer documentation, subject to change — E&OE. Spotted an inaccuracy? Let us know
Enhancements (optional)
Optional additions — this product works without them.
YUASA NP Battery 12 AH-12V Flame Retardant (Used in ZXSe panels)
Alternative — interchangeable standby battery option (12Ah instead of 7Ah) for the same PSU.
